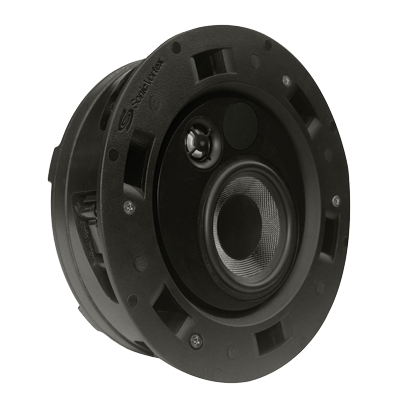

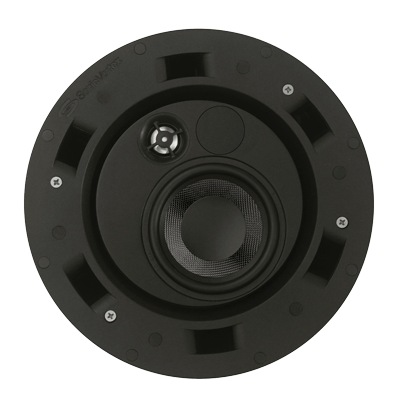

Beale Street 4″ Pancake Speaker

The Beale Street 4” Pancake In-Ceiling / In-Wall Speaker P4BB provides an ultra-shallow depth (less than 70mm) and featuring Sonic Vortex® technology generating rich, deep bass and effortless clarity.

Options:

This range includes two models to suit various requirements and budgets:

  • MB = More Better – offering a broader sound and deeper bass
  • BB = Better than their Best – offering more sound detail and power handling

Description

The Beale Street in-ceiling angled speaker is 4″ in diameter.

The Beale Street in-ceiling / in-wall speaker range offer a range of advantages which help them overcome of the challenges often faced by speakers of this type including:

  • More bass in less space
  • Built-in protection for components
  • Control of the sound
  • No back box problems
  • Reduced sound leakage
  • Sonic Vortex technology

Sonic Vortex Technology:

Beale Street 4″ Pancake Speakers features Beale Street Audio Sonic Vortex® technology generating rich, deep bass and effortless clarity from what most people would call a ‘back box’, but is not. It is actually a compact, integrated tuned enclosure. This patented technology is a ‘twist’ on Ported Transmission Line design, that optimizes air movement to produce astonishing sound. The enclosure also keeps sound from bleeding to other rooms while adding 6 to 9dB boost in mid-lower bass

Beale Street Audio have a Good, Better Best formula in their model hierarchy. However, the “B” in their model number designates “Better” since they believe that their “Good” is better than the competitions “Good”. So, they start with Better and have some fun with the other suffixes.

Check out our Beale Street Audio Blog to find out more.

Beale Street Audio (Vanco International) also offer a Lifetime Warranty on all their speakers.

Resources

Specifications

  • Speaker Type – In Ceiling / In Wall 2-Way
  • Woofer:
    • MB – 4″ Fluted Injected Poly
    • BB – 4″ Carbon Fiber
  • Tweeter:
    • MB – 3/4″ Aluminum Dome
    • BB – 3/4″ Titanium Dome
  • Frequency:
    • MB – 62 Hz – 24 kHz
    • BB – 59 Hz – 25 kHz
  • Sensitivity – 88db
  • Butyl Rubber Surround
  • Sonic Vortex® Ported Transmission Line

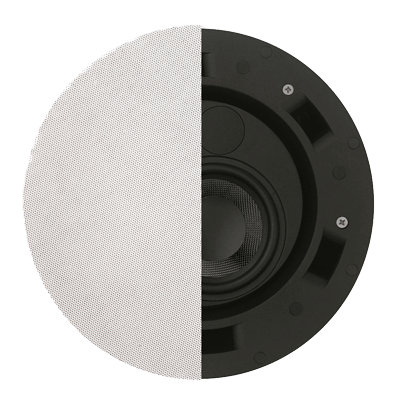

  • Magnetic Bezelless Grille – White; paintable
  • Impedance – 8Ω
  • Connector Type – Gold Spring Push Terminal
  • Depth – 2.76″ (70.2mm)
  • Speaker Weight – 2.62 lbs (1.19kg)
  • Cutout – 8.4″ (214mm)
  • Diameter – 9.5″ (241.4mm)
  • Frequency/Crossover Setting – Full range only
  • Power Handling – 5-80W
  • EZBracket Size – F
  • Highlights – Ultra Shallow Depth Pancake Less than 3″ Depth (70mm)
  • Includes round and square grills
