Pulse Audio 2 Channel Class D Amplifiers

These amplifiers are an ideal solution for residential and commercial audio installations that require a simple setup and great sound output. With a small footprint, but high output, these Class D amplifiers can sit on a desktop, or can easily be mounted on a wall or within a rack using the included mounting brackets.

Models available:

  • PA2X25 – 25W
  • PA2X60 – 60W
  • PA2X125 – 125W
  • PA2X150 – 150W



Description

Pulse Audio 2 Channel Class D Amplifiers can be used in a stereo system, but can also be switched for use in bridged or mono applications.

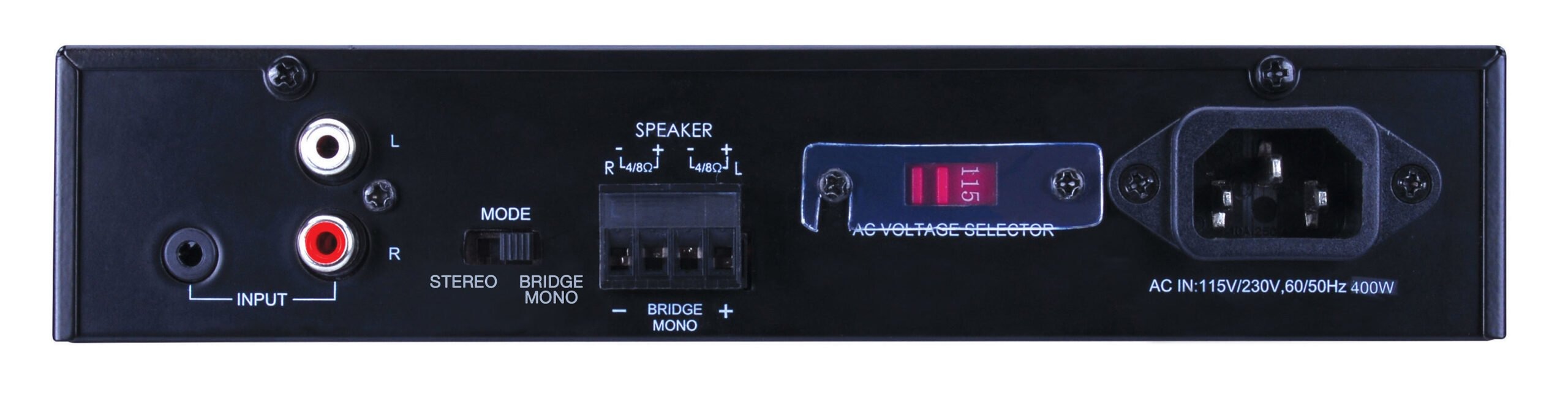

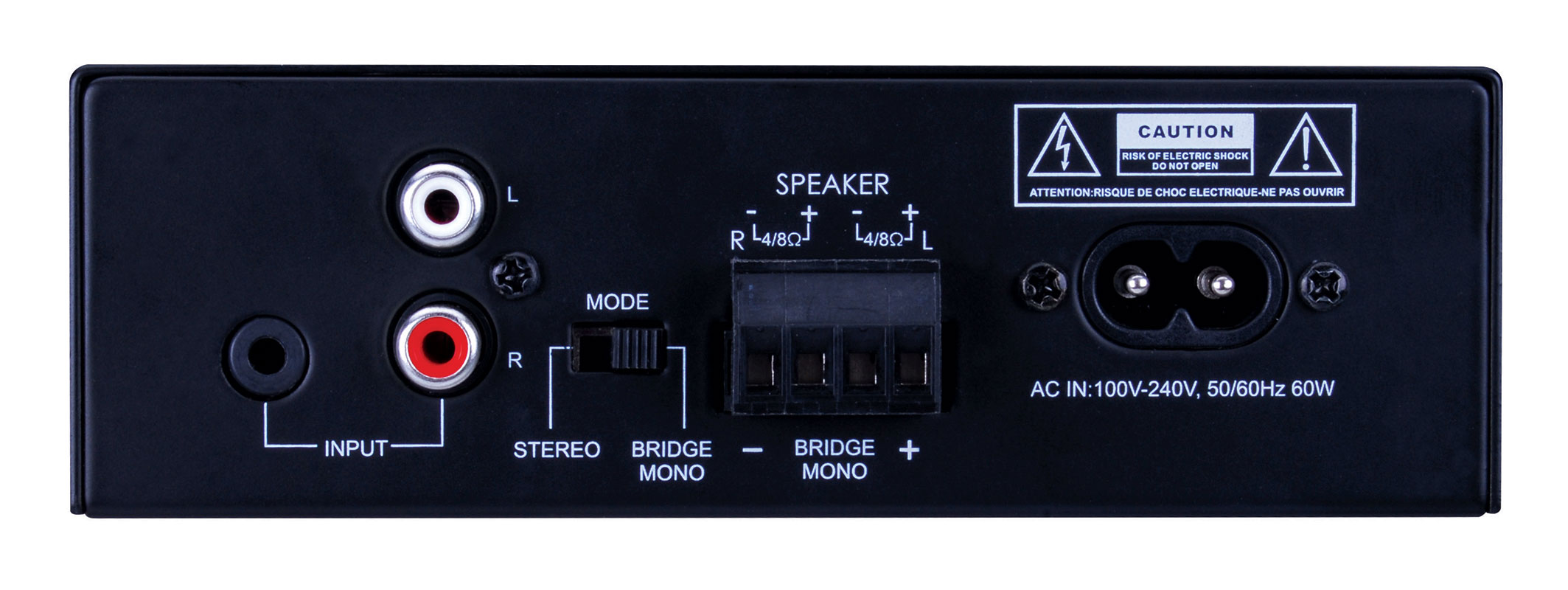

The inputs consist of two stereo audio inputs, two RCA inputs, and a single 3.5mm input for versatility. Also includes an auto-ON feature so the units do not need to be powered manually, just hit play and the amps will power on automatically!

With a broad range of power output to pick from, these amplifiers are a great solution for any desired application.

Package Contents:

  • Bridgeable Amplifier
  • Power lead cable
  • 1- 4 conductor Phoenix connector (screw down terminal)
  • Mounting bracket and screws
  • Product Manual

Pulse Audio (Vanco International) also offer a 2 year-Warranty on all Pulse Audio products.

Resources

Specifications

 PA2X25 PA2X60 PA2X125

PA2X150
Power Output (RMS @ 8Ω) 25Wx2 60Wx2 125Wx2

150Wx2

Power Output (RMS @ 4Ω)

 45Wx2 90Wx2 180Wx2

225Wx2

Bridge Output (RMS @ 8Ω)

 90W 180W 360W

450W

Total Harmonic Distortion (THD):

 <1%(Rated power:

25W @ 8Ω

 <1%(Rated power:

60W @ 8Ω

 <1%(Rated power:

125W @ 8Ω

 <1%(Rated power:

150W @ 8Ω
Signal to Noise: >90 dB A WTD >90 dB A WTD >90 dB A WTD

>90 dB A WTD

Frequency Response:

 20Hz~20KHz +0/- 2dB@ 8Ω 20Hz~20KHz +0/- 2dB@ 8Ω 20Hz~20KHz +0/- 2dB@ 8Ω

20Hz~20KHz +0/- 2dB@ 8Ω
Line Level Input Sensitivity: 700mV 700mV 700mV

700mV

Thermal Protection:

 Yes Yes Yes Yes
Short Protection: Yes Yes Yes

Yes

Dimension:

 143mm x 95mm x 45mm 214mm x 250mm x 44mm 214mm x 250mm x 44mm

214mm x 250mm x 44mm
Weight: 0.6kG 1.32kG 1.65kG

1.65kG

PulseAudio

In 2016, Vanco International introduced PulseAudio™, an amplifier and audio accessories line made for residential and commercial audio distribution.

The PulseAudio line has continued to expand to include easy-to-integrate amplifiers and audio distribution solutions such as streaming receivers, audio signal extenders and converters, speaker selectors, and volume controls. This selection of value-priced devices is developed based on input from the Vanco customer community, allowing distributors to offer targeted, affordable solutions for both commercial and residential audio systems.
