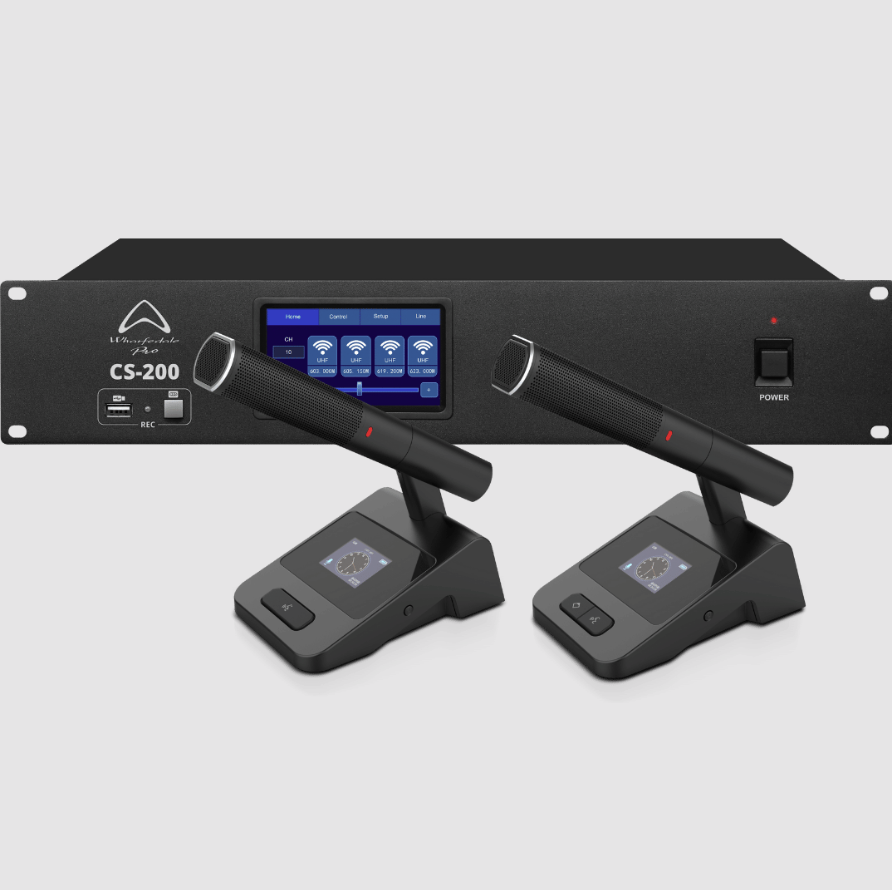

Wharfedale CS-200 Wireless Conference System

The CS-200 series is a wireless UHF-band digital conference solution that leverages high-precision PLL technology to ensure stable and reliable signal transmission.

Core system:

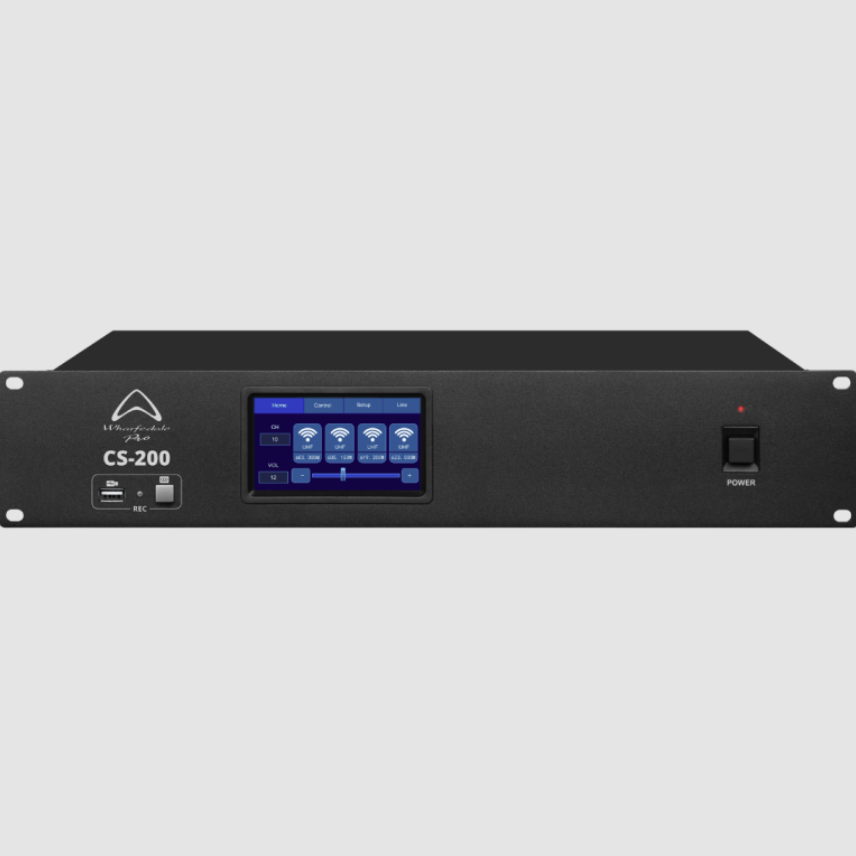

  • Central Control Unit

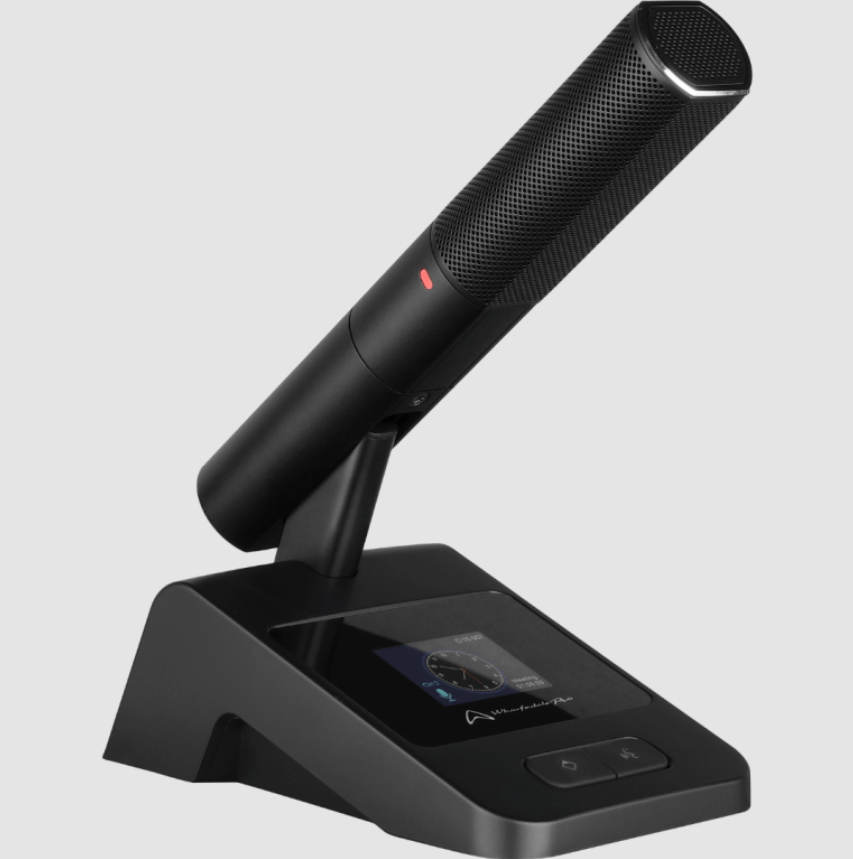

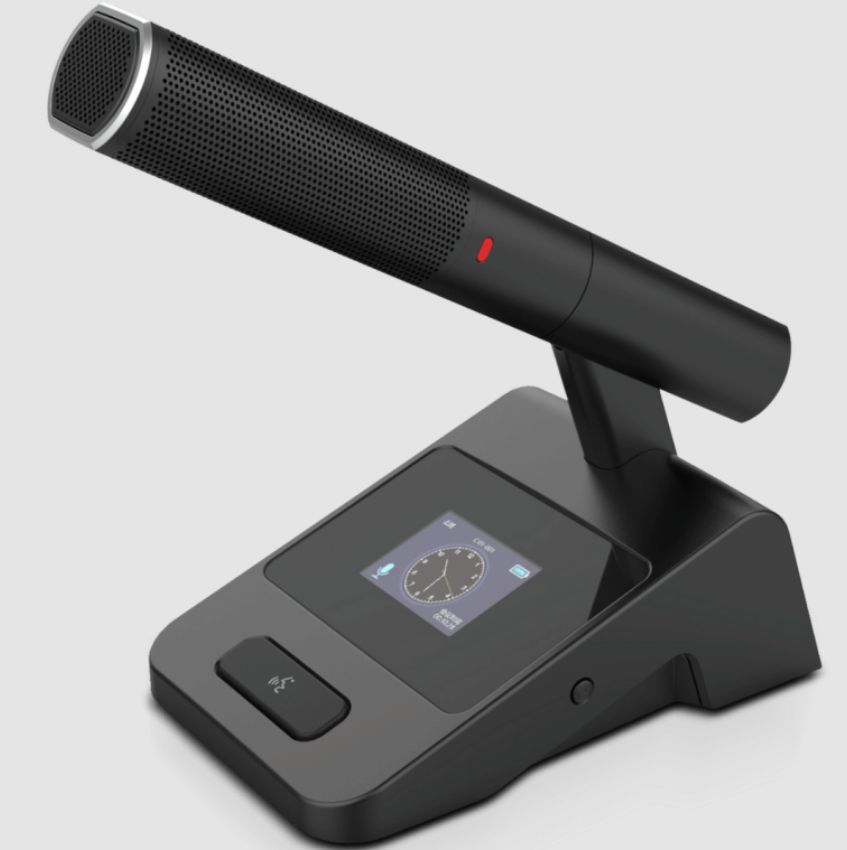

  • Wireless Mic Units – Delegate / Chair options

Optional components:

  • Feedback suppressor
  • USB charging unit
  • Antennae system
  • Range extender

Description

Wireless Freedom of Speech

  • 4.3” Touchscreen central processor
  • Video camera tracking facilities
  • Up to 200 mic units per system
  • Perfect for large scale system customisation
  • Multiple accessories to ensure range and audio quality

With a sleek, modern design and intuitive user interface, the system is well-suited for everything from mid-sized corporate meetings to large-scale international events.

Designed to overcome the limitations of traditional single-antenna systems, the CS-200 eliminates audio dropouts and reduces background interference. Advanced shielding and anti-interference circuitry minimize disruptions from mobile devices, while features like volume control, dynamic compression, and noise reduction deliver high-quality, natural sounding audio.

The system even caters for control over multiple video cameras, ensuring that the person talking is always in view. A single system can run up to 200 Chair and Delegate microphone units with capacity to have 4 people speaking simultaneously.

The mic units include USB-C rechargeable batteries for tidy system management plus – the system is supported with the CS-200P multi-port USB charging system.

With a comprehensive UHF antenna amplification unit (WF-UA80), the CS-200 system is scaleable, professional and fully configurable to suit even the most demanding of conferences.

Specifications

Central Unit

Feature Specification
Model
CS-200 – Central Control Unit
Carrier band
UHF 603–630 MHz (modifiable)
Signal power
18 dB
Modulation
FM
Control channel
433 MHz
Operating effective distance
60 m
Oscillation method
PLL Phase-locked Frequency synthesis
Sensitivity
S/N > 60 dB (at an offset equal to 25 KHz input 6dBV)
Bandwidth
30 MHz
Maximum offset
±45 KHz
Combined S/N ratio
>105 dB
Combined T.H.D
<0.7% @1 KHz
Combined freq response
45 Hz–18 KHz ±1 dB
Supply voltage
AC110–220 V
Output power
25 W
Output socket
XLR, 6.3 mm
Output impedance
220Ω
Body size
465 × 325 × 97 mm



Microphones

Feature Specification
Model
CS-200C / CS-200D Mic Units
Screen size
2.5”
Carrier Band
UHF 603–630 MHz
Power output
15 mW
Control channel
433 MHz
Oscillation method
PLL phase-locked frequency synthesis
Harmonic amplitude
< -65 dBm
Bandwidth
30 MHz
Microphone type
Capacitive, cardioid directional
Battery
18650 × 2
Charging method
Type-C
Current consumption
120 mA
Square bar angle
42 degrees longitudinal
Maximum ofset
±45 KHz
Body size
120 × 157 × 56 mm
Microphone size
21.5 mm



Feedback Suppressor

Feature Input Output
Model
AF-919 – Microphone Processor
Impedance
10 KΩ
1 KΩ
Max Signal
1Vrms (2.2 dBu)
1Vrms (2.2 dBu)
THD
< -85dBu
Resolution
24 Bits
24 Bits
Sound Channel
Single Track
Single Track
Sampling Freq
40 KHz
S/N
>90 dB
Control Interface
J4
Header Interface
PH2.0 mm Connector (J1, J2, J3)
Current Consumption
VCC : (+4.5 V ~ +5.5 V)
<60 mA
VCC : (+9 V ~ +12 V)
<50 mA
VCC : (+9 V ~ +12 V)
<50 mA

Antenna Amplifier

Feature Specification
Model
WF-UA80 – Antenna amplifier
Frequency range
470–960 MHz
RF output gain
1.5 dB ± 0.5 dB
Third-order intermodulation intercept point
+14 dBm
Noise index
< 2 dB
System resistance
50 ohms
Antenna interface power
DC 12V / 150 mA
DC interface power supply
DC 12V / 1A per channel
Main unit input power
AC 90–230 V, 50/60 Hz
Connector
BNC
Size
(W) 482 × (H) 44 × (D) 220 mm
Weight
2.25 KG
Output power
5W
Output power
5W
Current Consumption
VCC : (–9 V ~ –12 V)
