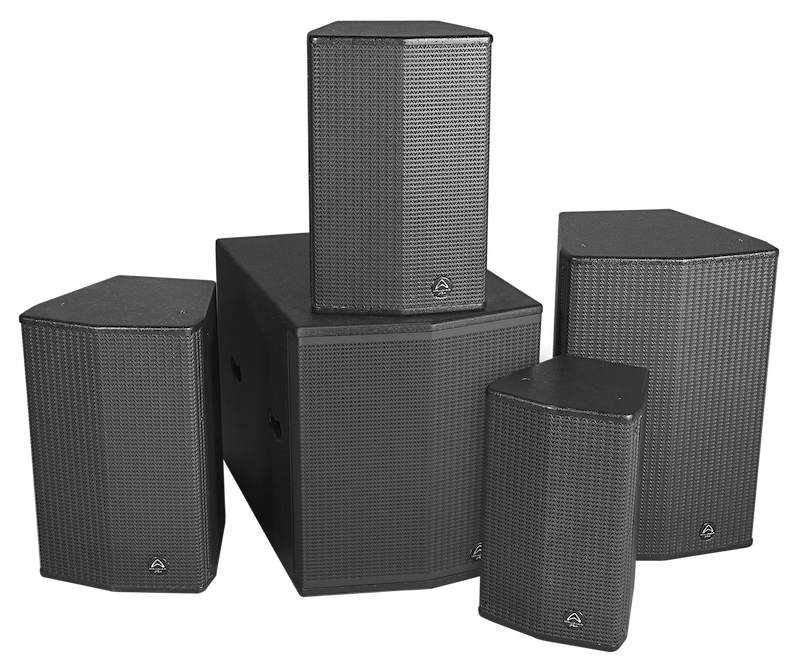

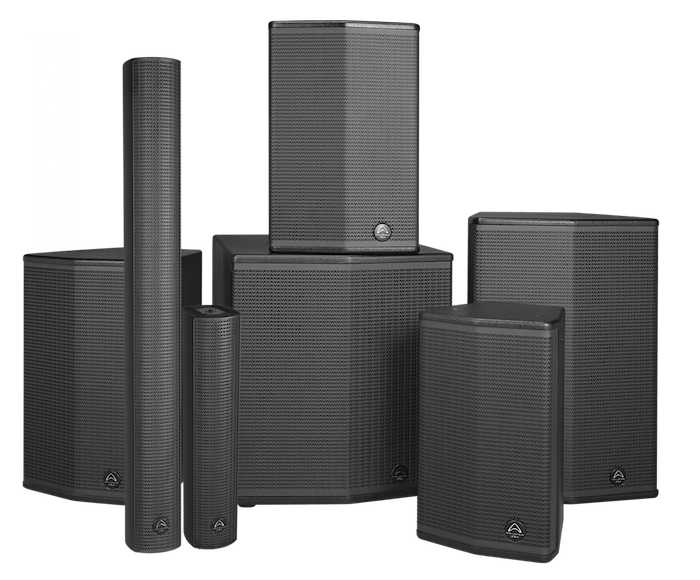

Wharfedale Pro SIGMA X Series

The Wharfedale Pro SIGMA-X series features newly designed front grilles and support materials to make the installation simply look and sound great.

Models available:

  • SIGMA-X8 – 150 Watt 8″ loudspeaker
  • SIGMA-X10 – 200 Watt 10″ loudspeaker
  • SIGMA-X12 – 300 Watt 12″ loudspeaker
  • SIGMA-X15 – 350 Watt 15″ loudspeaker
  • SIGMA-XV5 – 180 Watt column loudspeaker
  • SIGMA-XV9 – 360 Watt column loudspeaker
  • SIGMA-X18B – 500 Watt Subwoofer

Version: The Xv5 and XV9 models are available in both Standard and 70/100 V (T)

Colour options: Black; White

Description

Wharfedale Pro SIGMA Series – EASY INSTALL

The SIGMA-X Series offers easy fixings and brackets and EASE gll files are available for download.

The improved mounting and rigging options make SIGMA-X simple to install into almost any location.

Features:

  • Newly designed cosmetics
  • Rotatable HF waveguides
  • Re-evaluated performance
  • Updated column models with HF drivers
  • EASE gll files available for download
  • Supported with system diagrams
  • Supported with downloadable FIR presets
  • Easy fixings and brackets
  • Available in black or white durable paint finishes

GRILLE DESIGN

All SIGMA-X models feature the iconic Wharfedale Pro logo.  A grille to enhance any stylish installation, without being visually overpowering.

ROTATABLE WAVEGUIDES

SIGMA-X8, SIGMA-X10, SIGMA-X12 AND SIGMA-X15 feature a rotatable waveguide.

90° x 60° or 60° x 90°….you decide.

EASY INSTALL

Installations can be complicated enough, so we have made SIGMA-X series as easy as possible.

SIGMA-X full range cabinet models all have 17 x M8 rigging points, PLUS 35 mm pole sockets. Fly or wall bracket!

SIGMA-X8, X10, X12 and X15 can use the optional WPB-1 or WPB-2 wall brackets

EASY CONNECTION

All SIGMA-X models (with the exception of the 70 V / 100 V T models) are equipped with both speakON and barrier strip inputs.  It is another small step that makes the installation easy.

Resources

Specifications

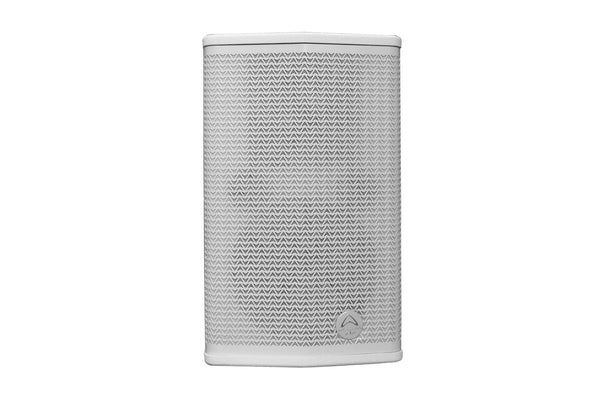

SIGMA-X8 – 150 Watt 8″ loudspeaker

  • 150 W AES (Continuous)
  • 300 W Programme
  • 600 W Peak
  • 124 dB Max SPL @ 1 m

SIGMA-X10 – 200 Watt 10″ loudspeaker

  • 200 W AES (Continuous)
  • 400 W Programme
  • 800 W Peak
  • 126 dB Max SPL @ 1 m

SIGMA-X12 – 300 Watt 12″ loudspeaker

  • 300 W AES (Continuous)
  • 600 W Programme
  • 1200 W Peak
  • 129 dB Max SPL @ 1 m

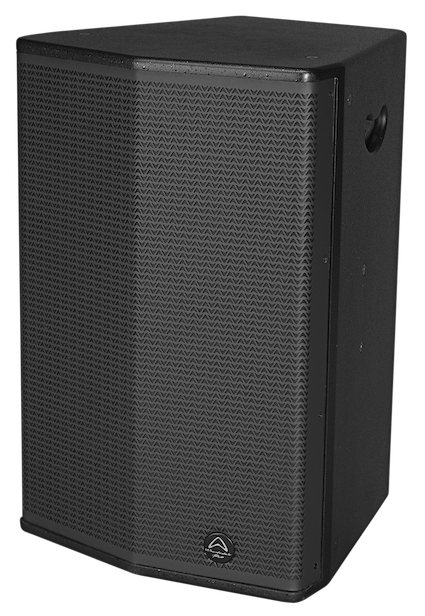

SIGMA-X15 – 350 Watt 15″ loudspeaker

  • 350 W AES (Continuous)
  • 700 W Programme
  • 1400 W Peak
  • 129 dB Max SPL @ 1 m

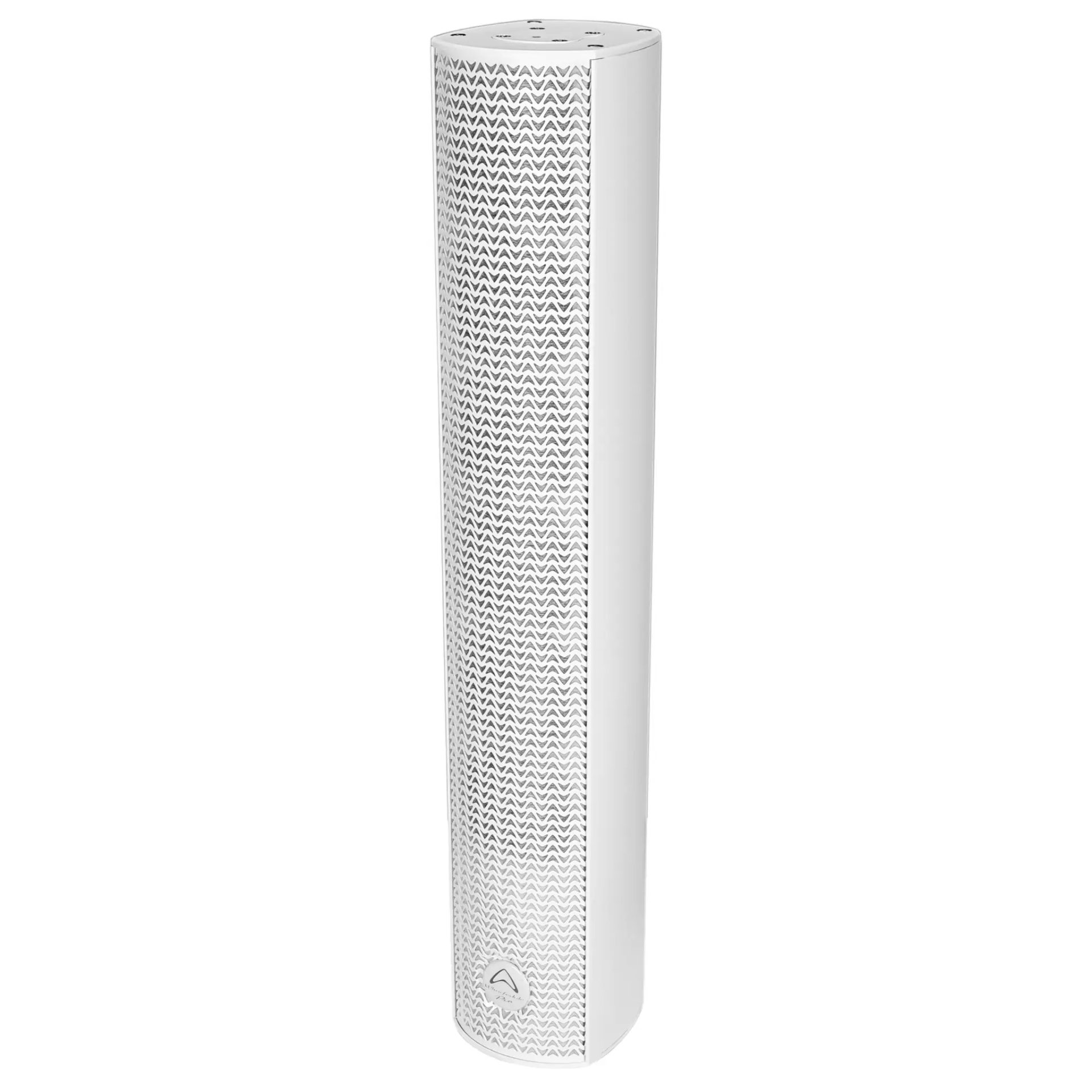

SIGMA-XV5 / XV5T – 180 Watt column loudspeaker

  • 5 x 3″ full range drivers
  • 1 x HF compression driver
  • 180 W AES (Continuous)
  • 360 W Programme
  • 720 W Peak
  • 123 dB Max SPL @ 1 m
  • 70 V / 100 V Hi-Z model available

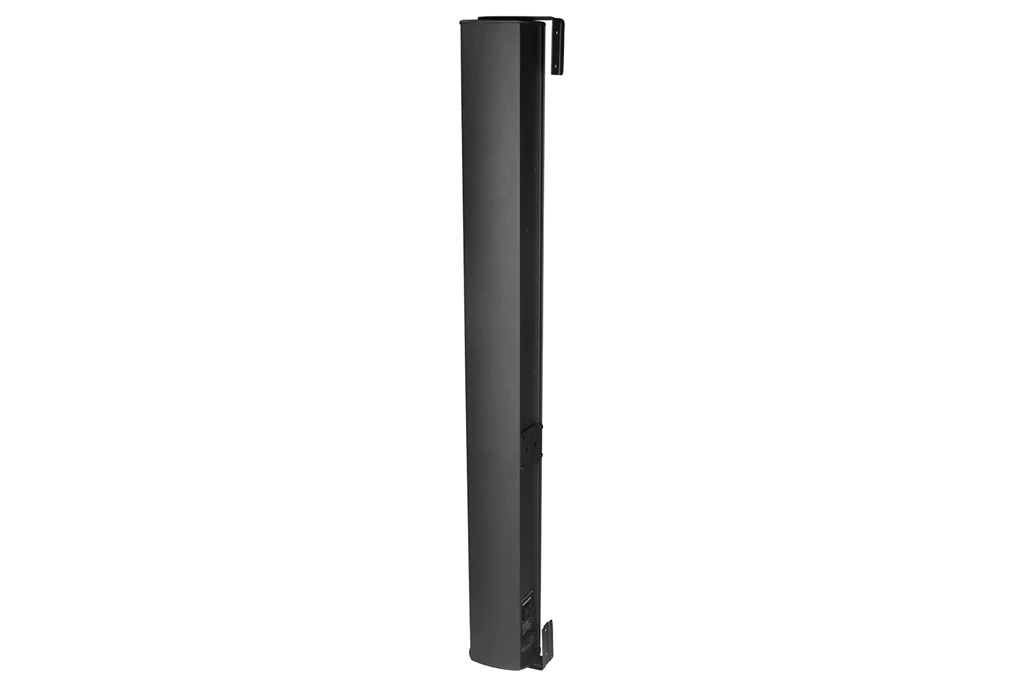

SIGMA-XV9 / XV5T – 360 Watt column loudspeaker

  • 9 x 3″ full range drivers
  • 2 x HF compression driver
  • 360 W AES (Continuous)
  • 720 W Programme
  • 1440 W Peak
  • 128 dB Max SPL @ 1 m
  • 70 V / 100 V Hi-Z model available

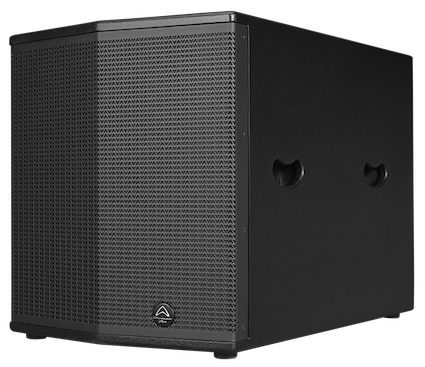

SIGMA-X18B – 500 Watt Subwoofer

  • 500 W AES (Continuous) Parallel
  • 1000 W Programme – Parallel
  • 2000 W Peak – Parallel
  • 2.5” LF Voice coils
  • 133 dB Max SPL @ 1 m
