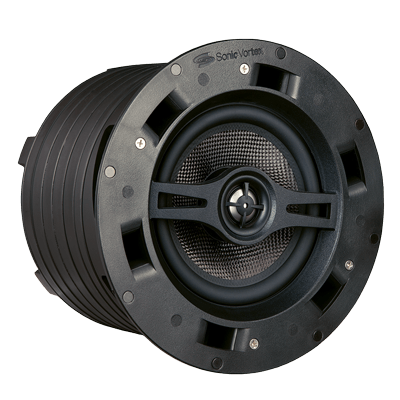

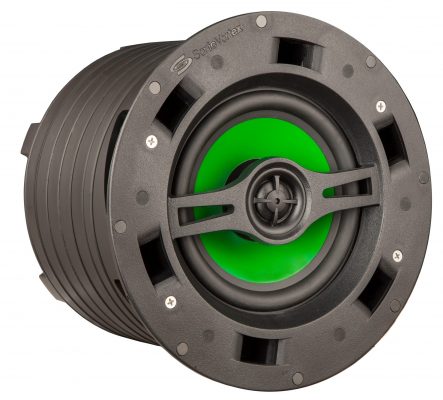

Beale Street In-Ceiling Speaker 6.5″or 8″

Beale Street 6.5″ In-Ceiling speakers feature Sonic Vortex® technology generating rich, deep bass and effortless clarity.

The Beale Street in-ceiling speaker comes in 2 size ranges:

  • IC6 Range – 6.5″ diameter
  • IC8 Range – 8″ diameter

Each size range includes three models to suit various requirements and budgets:

  • B = Better – offering smooth sound and great value
  • MB = More Better – offering a broader sound and deeper bass
  • BB = Better than their Best – offering more sound detail and power handling

Description

Beale Street in-ceiling speakers are designed to overcome common challenges associated with traditional ceiling speakers, including limited bass, sound leakage and back box requirements. Their integrated enclosure and Sonic Vortex® technology provide enhanced low-frequency performance without requiring a conventional external back box.

Sonic Vortex® Technology

The patented Sonic Vortex® design uses a compact integrated tuned enclosure based on a twist of Ported Transmission Line technology. By optimising air movement, it helps produce rich bass and clear sound while reducing sound transfer into adjacent rooms. The enclosure also provides a 6–9 dB boost in mid-to-lower bass.

Key Features

  • Patented Sonic Vortex® technology
  • Rich, deep bass from a compact integrated enclosure
  • Improved mid-to-lower bass performance
  • Reduced sound leakage between rooms
  • Built-in component protection
  • No conventional back box required
  • Multiple performance levels for different requirements
  • Available in 6.5″ and 8″ sizes

Purchase Information

Beale Street Audio (Vanco International) offers a Lifetime Warranty on all its speakers.

For more directional sound, the Beale Street angled in-ceiling speaker range is also available.

Complete Your Installation

Choose the Beale Street 6.5″ In-Ceiling Speaker that matches your performance and budget requirements and experience powerful, controlled sound from a discreet ceiling installation.

Resources

Product Manuals and Spec Sheets:

6.5″ Speakers

8″ Speakers

Beale Street Speaker Comparison Chart



Specifications

IC6

  • Speaker Type – In Ceiling 2-Way
  • Woofer:
    • B – 6.5” Poly
    • MB – 6.5” Fluted Injected Poly
    • BB – 6.5” Carbon Fiber
  • Tweeter:
    • B – 1” Silk Dome
    • MB – 1” Aluminum Dome
    • BB – 1” Titanium Dome
  • Frequency:
    • B – 46 Hz – 22 kHz
    • MB – 43 Hz – 24 kHz
    • BB – 40 Hz – 25 kHz
  • Sensitivity: 89db
  • Butyl Rubber Surround
  • Sonic Vortex® Ported Transmission Line
  • Magnetic Bezelless Grille – White; paintable
  • Impedance – 8Ω
  • Connector Type – Gold Spring Push Terminal
  • Depth: 6.5″ – 6.8″ (172mm)
  • Speaker Weight
    • B – 7 lbs (3.18kg)
    • MB – 7.10 lbs (3.22kg)
    • BB – 7.10 lbs (3.22kg)
  • Cutout: 8.4″ (214mm)
  • Diameter: 9.4″ (239mm)
  • Power Handling 5-120W
  • Pivoting Tweeter
  • EZBracket Size: F
  • Highlights:
    • B – Smooth Sound, Great Value
    • MB – Broader Sound, Deeper Bass
    • BB – More Detail and Power Handling



IC8

  • Speaker Type – In Ceiling 2-Way
  • Woofer:
    • B – 8″ Poly
    • MB – 8″ Fluted Injected Poly
    • BB – 8″ Carbon Fiber
  • Tweeter:
    • B – 1” Silk Dome
    • MB – 1” Aluminum Dome
    • BB – 1” Titanium Dome
  • Frequency:
    • B – 38 Hz – 22 kHz
    • MB – 35 Hz – 24 kHz
    • BB – 32 Hz – 25 kHz
  • Sensitivity: 92db
  • Butyl Rubber Surround
  • Sonic Vortex® Ported Transmission Line
  • Magnetic Bezelless Grille – White; paintable
  • Impedance – 8Ω
  • Connector Type – Gold Spring Push Terminal
  • Depth: 8.6″ (219.5mm)
  • Speaker Weight: 8.38 lbs (3.8kg)
  • Cutout: 10.3″ (261.5mm)
  • Diameter: 11.3″ (284mm)
  • Power Handling 5-120W
  • Pivoting Tweeter
  • EZBracket Size: B
  • Highlights:
    • B – Smooth Sound, Great Value
    • MB – Broader Sound, Deeper Bass
    • BB – More Detail and Power Handling
