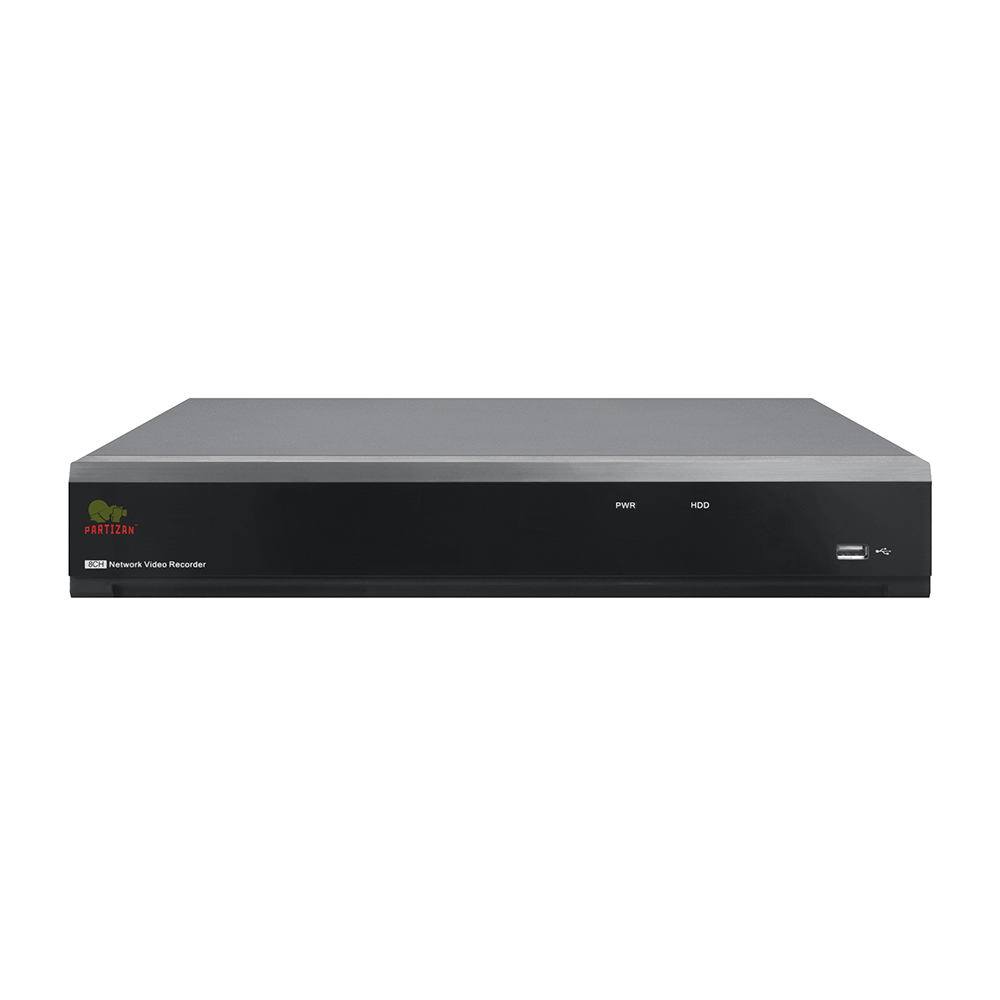

Partizan 8Mp 16channels (16xPoE) IP recorder (NVH-1652 POE SH v1.0)

With the Partizan 8Mp 16channels (16xPoE) IP recorder you can connect up to 16 video cameras with a resolution of 8.0Mp (4K) to this multifunctional NVR. All the video surveillance channels are recorded simultaneously by the device in real-time mode. Four recording modes – fulltime, alarm, motion or schedule – provide an opportunity to configure the system of video surveillance according to defined tasks within every period of time. The backup to USB storage devices is allowed.

Description

The Partizan NVR 8.0MP (4K) for 16 cameras (NVH-1652 PoE SH 1.0) H.265 codec (high-performance video compression technology) allows you to get a high-resolution video of minimum size (without any quality loss) saving much space on your hard disk. The network managing can be provided from any place of the world. The modern software includes a convenient configurator and a CMS monitoring system. The Ethernet 10/100/1000Base-T network interface provides a reliable, protected connection with the optimal data transfer rate, the maximum value of which is up to 1 Gbit/s.

This model is equipped with the audio input and output for recording and sound playback. The NVR is equipped with a built-in PoE switch for 16 channels (cameras). This allows you to connect each IP camera directly to the NVR with only one Ethernet cable, which simultaneously transmits video and power.

Advantages:

  • 16-channel realtime record
  • 8Mp (4K) support
  • Built-in POE power supply
  • Smart functions support:
    • Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Pedestrian Detection, Face Detection, Cross Counting, Face Recognition. Available only with SH-series cameras.
  • ONVIF 2.6 protocol support
  • Partizan mobile app support
  • Ability to work with Partizan Cloud Storage
  • Remote access to the device with Partizan MAC
  • 3 years warranty

Specifications

  • Supported camera quantity(x)recording resolution@frames per second:16x8Mp@25, 16x5Mp@25, 16x2Mp@25
  • POE function:16 independent POE ports. NVR is equipped with built-in 16-channel (cameras) POE-switch. This allows to connect each IP camera directly to the NVR using only one Ethernet cable with video and power supply transmission
  • Video compression: H.265. It is a highly efficient video compression technology that allows you to compress a high resolution video to a minimum size without quality loss, which saves space on your hard disk
  • Audio inputs/outputs:  1xRCA/1xRCA. 1 audio input (AUDIO IN) for audio recording and 1 audio output (AUDIO OUT) for audio playback
  • Video outputs: 1xVGA, 1xHDMI
  • Supported HDD (HDD not included): 1хSATA HDD ≤ 8Tb
  • Network: Ethernet 10/100/1000Base-T
  • Management and control: Optical mouse
  • Operating temperature: 0 – +50 °C
  • Dimensions: 300x302x54mm, 3500g
  • Housing material: Metal
