Name: Partizan 8Mp16channels (8xPoE) IP recorder (NVD-811 POE v5.0 Cloud)
SKU: 4232

Partizan 8Mp16channels (8xPoE) IP recorder (NVD-811 POE v5.0 Cloud)

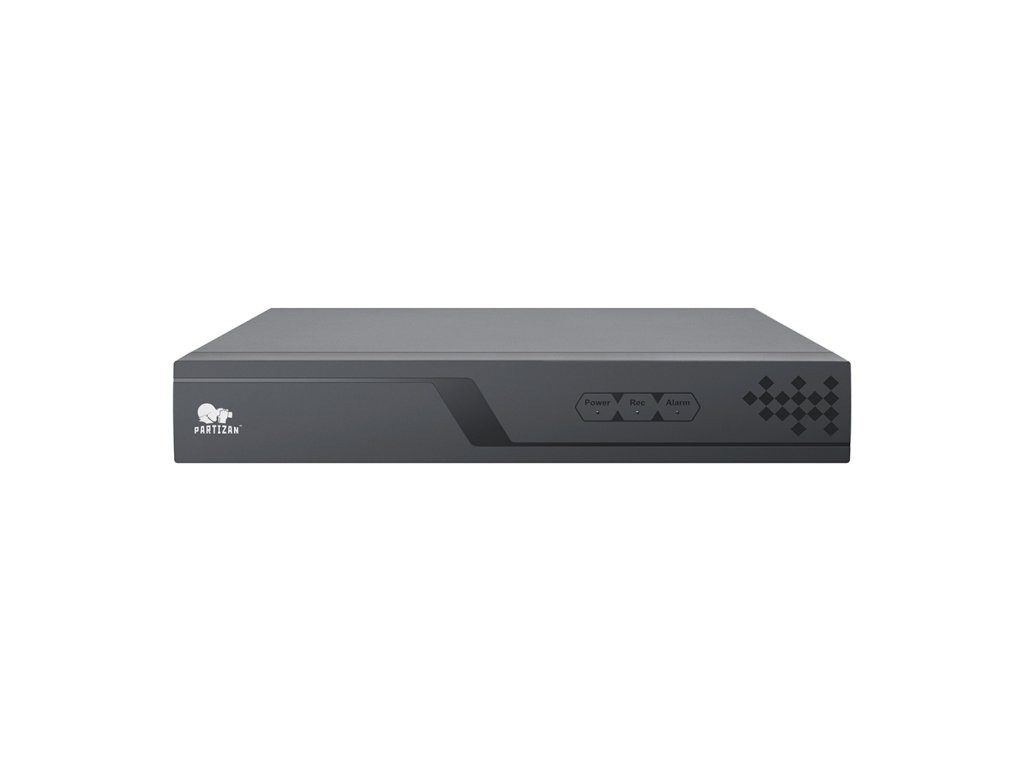

Partizan 8Mp 16channels IP recorder NVD-811 POE v5.0 Cloud - unit shown from the front

Image showing the Partizan app on desktop computer, Tablet and phone.

With the Partizan 8Mp 16channels (8xPoE) IP recorder (NVD-811 POE v5.0 Cloud) you can connect up to 16 video cameras with a resolution of 8Mp to this multifunctional NVR.

All the video surveillance channels are recorded simultaneously by the device in real-time mode.

Four recording modes – fulltime, alarm, motion or schedule – provide an opportunity to configure the system of video surveillance according to defined tasks within every period of time.

Description

The backup to USB storage devices is allowed.

With the advanced H.265X/H.265 compression codec, you get high-quality video in significantly smaller file sizes—without any loss in image clarity.

The network managing can be provided from any place of the world. The modern software includes a convenient configurator and a CMS monitoring system. T

he Ethernet 10/100Base-T network interface provides a reliable, protected connection with the optimal data transfer rate, the maximum value of which is up to 100 Mbit/s. The NVR is equipped with a built-in PoE switch for 8 channels (cameras). This allows you to connect each IP camera directly to the NVR with only one Ethernet cable, which simultaneously transmits video and power.

Additional Advantages of the Partizan NVR 8.0MP (4K) for 16 cameras:

16-channel record
8-port built-in PoE power supply
ONVIF 2.4 protocol support
Smart functions support:
- Human detection / Human Perimeter Intrusion Detection / Human Line Crossing Detection / Face Detection. Available only with Cloud-series cameras
Support mobile monitoring: iOS & Android
3 years warranty

Specifications

Supported camera quantity(x)recording resolution@frames per second: 16x8Mp@25, 8x8Mp@25, 4x8Mp@25, 1x8Mp@25
POE function:8 independent POE ports. NVR is equipped with built-in 8-channel (cameras) Poe-switch. This allows to connect each IP camera directly to the NVR using only one Ethernet cable with video and power supply transmission.
Video compression: H.265X/H.265, a highly efficient video codec, is an excellent choice for maintaining normal resolution and image quality while using a reasonable amount of storage. This high-performance video compression technology enables you to record high-resolution video at a minimal file size—without any loss of quality—significantly saving space on your hard drive.
Audio inputs/outputs: 1ch TRS 3.5mm/1ch TRS 3.5mm. 1 audio input (AUDIO IN) for audio recording and 1 audio output (AUDIO OUT) for audio playback
Video outputs: 1xVGA, 1xHDMI
Supported HDD (HDD not included): 1хSATA HDD ≤ 14Tb
Network:RJ-45 (10/100Base-T)
Management and control: Optical mouse
Operating temperature: 0 – 50 °C
Dimensions:255x225x43 mm, 700g
Housing material: Metal
