Description

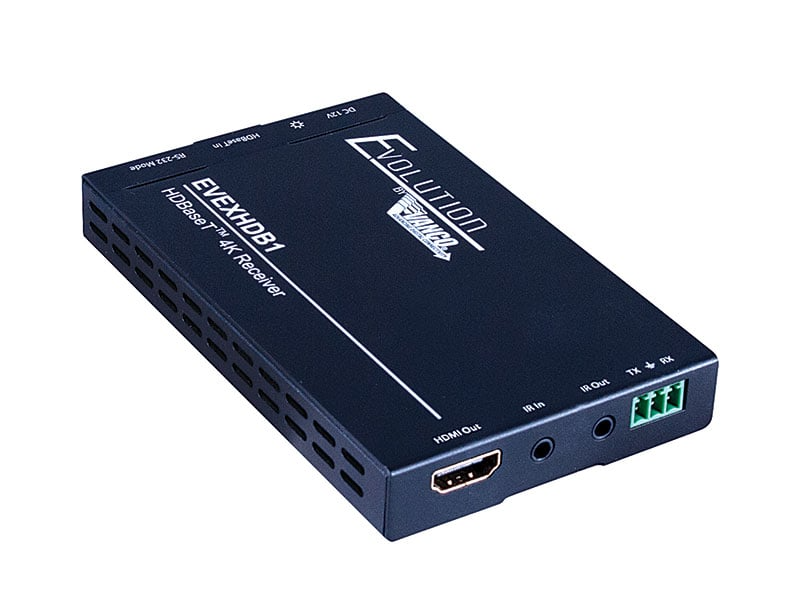

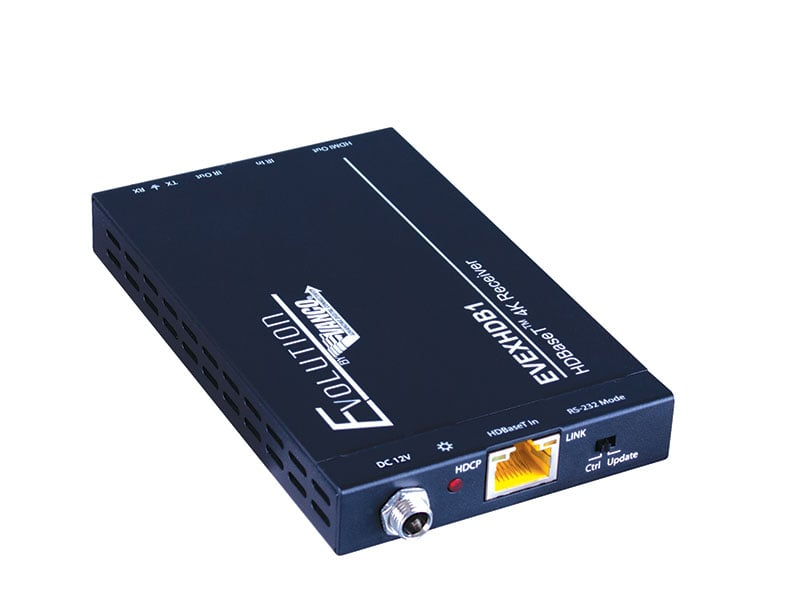

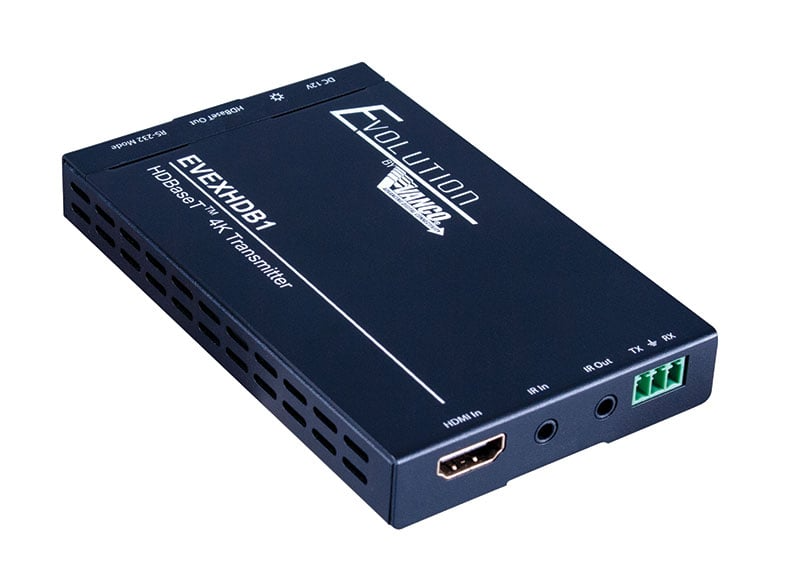

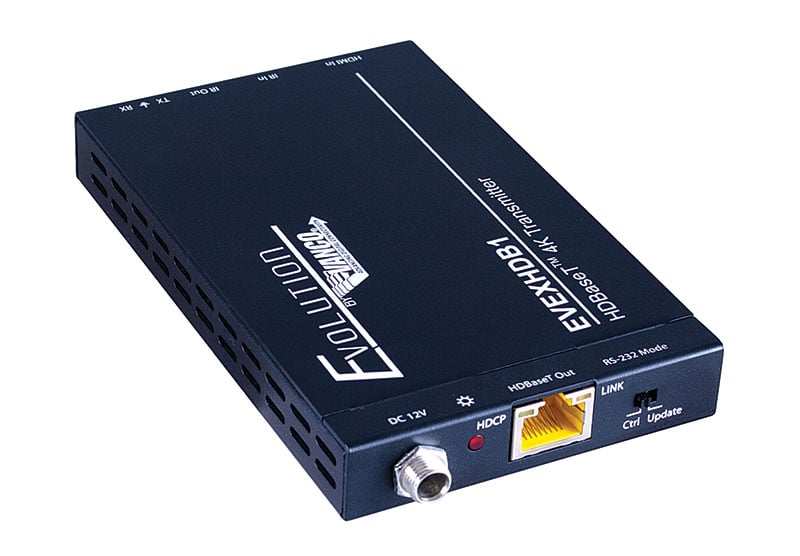

Vanco Evolution HDBaseT™ Slim Extender EVEXHDB1 Features:
- Features HDBaseT Technology- optimized for whole-home or commercial distribution of uncompressed high-definition signals at more than twice the distance of standard HDMI cables without degradation

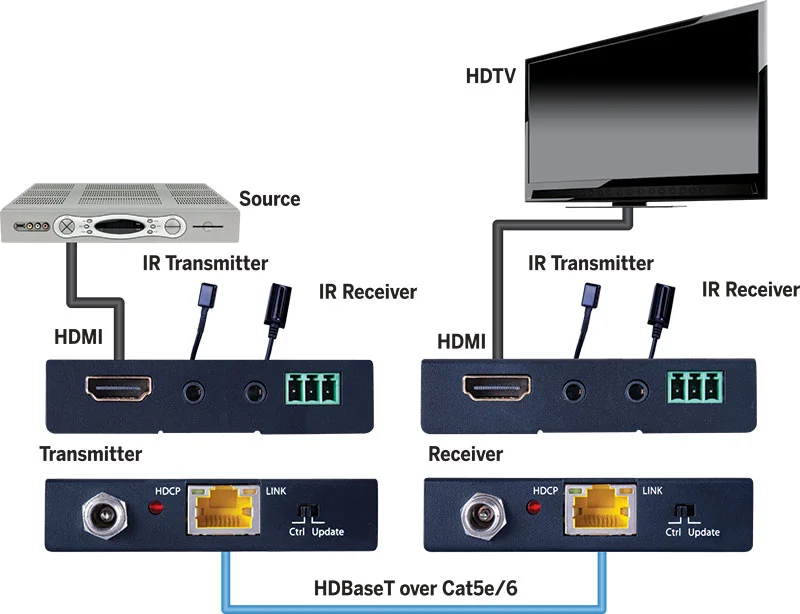

- HDBaseT Extender can connect uncompressed full HD digital video and audio through a single 230ft/70m Cat5e/Cat6 cable
- Features Power over Cable (PoC) Technology which transmits power over Cat5e/6- allowing for either Transmitter or Receiver to be powered without the use of a power supply. The result is an easy and flexible installation with low maintenance
- Transmission Range: Extends 1080p resolutions up to 230ft (70m) over a single Cat5e/6 cable and 4K@60Hz- 4:2:0 color subsampling up to 131ft (40m)
- Bi-directional IR control
- High Bandwidth: 10.2Gp
- HDCP 2.2 compliant
- CEC Support
- Slim and compact design
- Power Supply: DC 12V
- Dimensions: 2.9” W x .7” H x 4.7” D
Tech Support Tips:
- HDMI UHD Deep Color mode on some LG displays may need to be deactivated to avoid video signal issues
- Input Signal Plus on some Samsung displays may need to be deactivated to avoid video signal issues
Contents:
- EVEXHDB1 (TX & RX)
- (1) IR Blaster (TX)
- (1) IR Receiver (RX)
- (1) DC 12V in line power supply
- Mounting Hardware
- Product Manual
Specifications
Frequency Bandwidth …………………………………………. 18Gbps
HDCP …………………………………………………………….. 2.2 Compliant (backwards compatible)
Input Ports………………………………………………………. (4) HDMI Female ports, (1) IR EXT port and (1)
RS232 port
Output ports ……………………………………………………. (1) HDMI Female port,(1) 3.5mm analog audio port
and (1) Optical port
HDMI Video Output……………………………………………. 480i ~1080p50/60, 4K2K@24/30/60Hz, 4:4:4
color subsampling; HDR and 3D Compatible
HDMI Audio Output……………………………………………. PCM, 2.1/5.1/7.1CH, Dolby 5.1, DTS5.1, DolbyTrueHD, DTS-HD
ESD Protection …………………………………………………. Human Body Model: ± 8kV (air-gap discharge)
± 4kV (contact discharge)
Dimensions (mm)………………………………………………. 180 (D) x 85 (W) x 11.6 (H)
Weight …………………………………………………………… 300g
Power Consumption (Max) …………………………………… 2.5W
Operating Temperature……………………………………….. 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature …………………………………………. -20°C ~ 60°C / -4°F ~ 140°F
