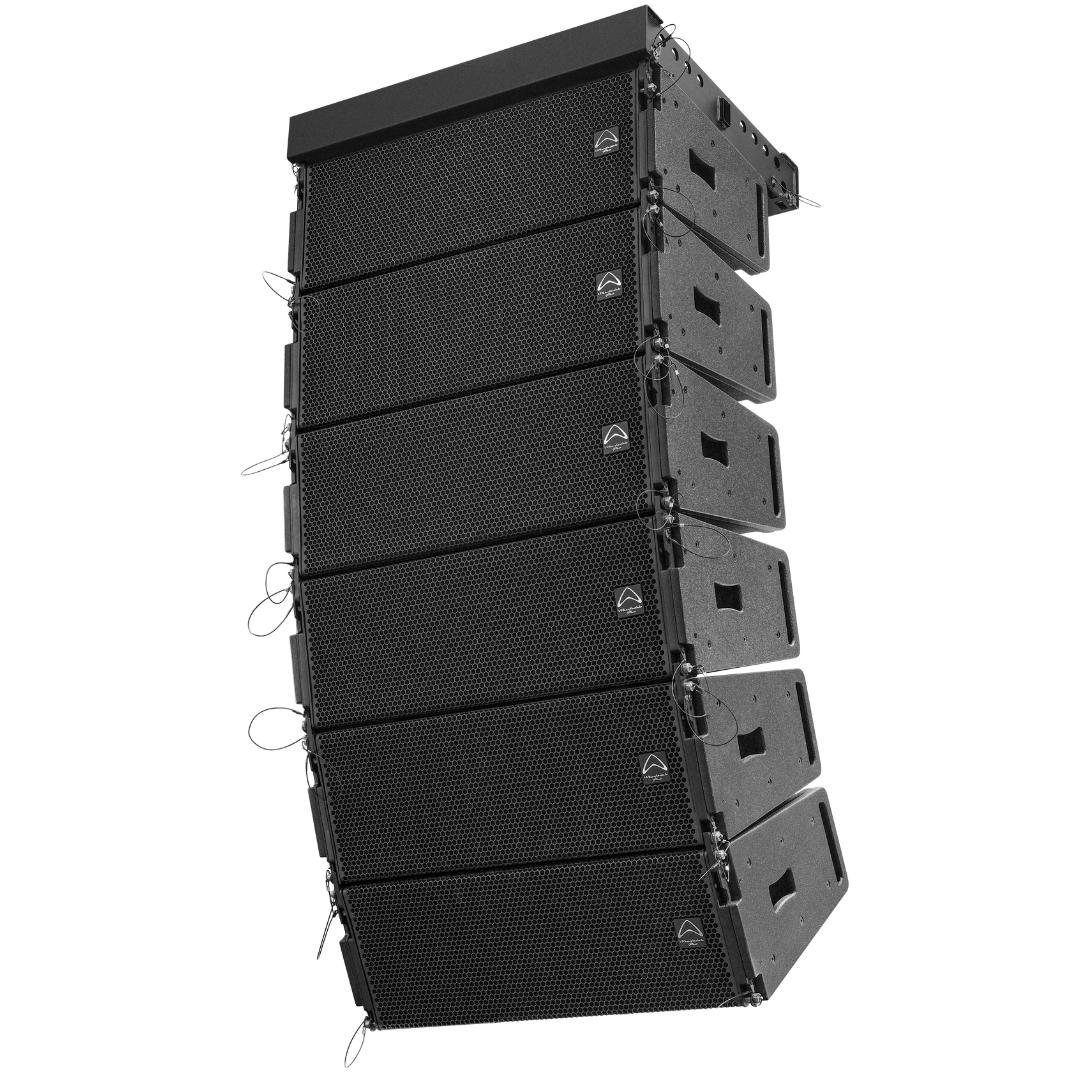

Wharfedale Pro Line Array System – XLA Series (Passive Speakers)

The Wharfedale Pro XLA Series is a scalable professional line array system combining time‑coherent full‑range elements with powerful, configurable flying subwoofers for precise, high‑output sound reinforcement.

Models available:

  • XLA-308 – LF 700 Watts Continuous
  • XLA-118SUB – 1600 Watts Continuous
  • WLA-221SUB – 2 x 1600 Watts Continuous

Description

Wharfedale Pro Line Array System – XLA Series features:

  • Flagship professional line array system for touring, rental, and high‑end installations
  • Modular system design with full‑range array elements and dedicated flown subwoofers
  • Advanced acoustic engineering for high output, uniform coverage, and clarity
  • Premium custom drivers from B&C (Italy) and Beyma (Spain)
  • Designed for scalable flown array configurations
  • Tailored FIR presets available for optimised system performance
  • Rugged construction for demanding production environments

The XLA Series is Wharfedale Pro’s all-new flagship line array system. With two subwoofer models and a 3-way full-range coaxial element, the system employs advanced acoustical engineering to deliver stunning, immersive sound.

At the core of the XLA-308 full-range element is a centrally mounted coaxial mid-high transducer, integrated with Wharfedale Pro’s innovative EVO-FLOW waveguide. Flanked by two advanced 8” neodymium woofers in separate vented enclosures, this design ensures precise, high-performance low-frequency output while maintaining compact dimensions and reduced weight. Custom drivers, crafted by B&C in Italy, provide exceptional clarity, uniformity, and sonic detail across all frequencies above 500 Hz.

For deep, powerful bass and unmatched system versatility, XLA Series offers two subwoofers. The XLA-118SUB is Wharfedale Pro’s first cardioid-arrayable flown subwoofer, designed for maximum flexibility and precision. Complementing it is the overwhelming XLA-221SUB, (yes 2 x 21”) which delivers the INFRABASS that customers around the world have been anticipating.

Both subwoofers are equipped with advanced custom drivers from Beyma featuring Maltcross technology and 4.0” multi-layer voice coils. This ensures superior heat management and reliable performance even under demanding conditions.

With flexible rigging options, including cardioid flown configurations, rugged construction, and tailored FIR presets, the XLA Series ensures unmatched clarity, precision, and power.

XLA has been over-engineered to ensure that the audience hears every nuance of the performance with unprecedented clarity and uniformity. It’s not just about volume; it’s about delivering sound with precision and power.



EASY RIGGING

The XLA-308 and the flying subwoofer, XLA-118SUB, feature our premium magnetic locking pins.

Easy, smooth and reliable inter-element physical connection and coupling



ACCESSORIES:

XLA Common Fly Frame

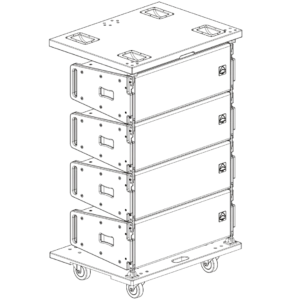

XLA-DB1

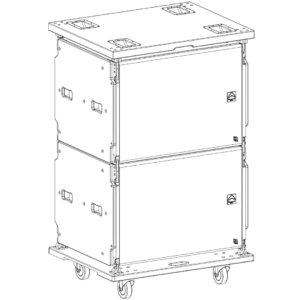

XLA-DB2

Supports both the XLA-308 elements and XLA-118SUB

Supports either an array of XLA-308 elements or combinations with the flying XLA-118SUB.

 Supports up to 4 x XLA-308 Elements

Durable dolly board with metal fixtures and birch plywood construction. All covered in durable Tough-Tone paint.

Supports up to 2 x XLA-118SUB

Durable dolly board with metal fixtures and birch plywood construction. All covered in durable Tough-Tone paint.



Resources

Specifications

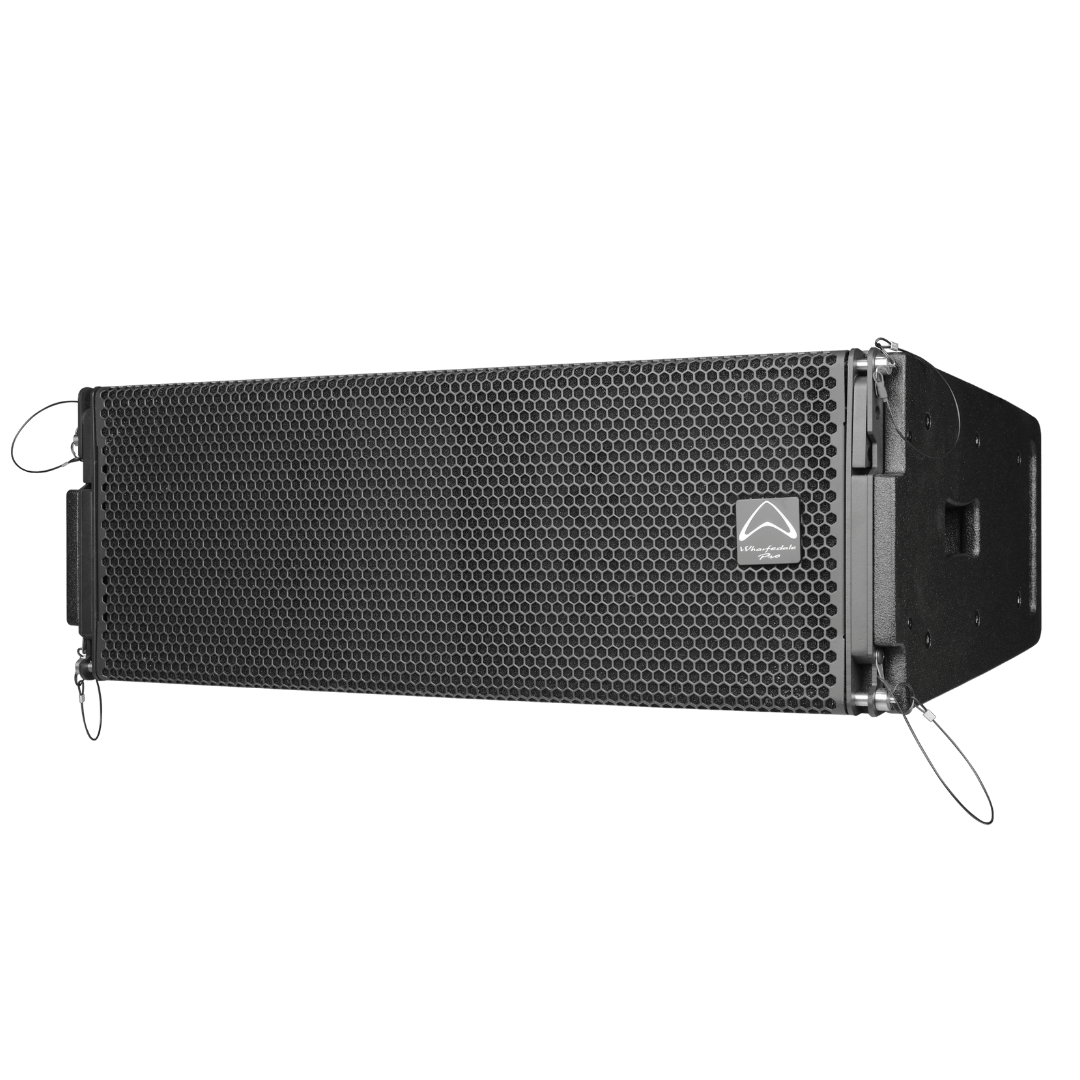

XLA-308

Specification Value
Active or Passive Passive
System Type Array Element
Configuration 3-way
System Continuous Power LF: 700 W / MHF: 150 W
System Programme Power LF: 1400 W / MHF: 300 W
System Peak Power LF: 2800 W / MHF: 600 W
Freq Response (+/-3 dB) 58 Hz – 20 KHz
Freq Range (-10 dB) 40 Hz – 25 kHz
Bi-amp Mode Switch No
Bluetooth No
IP Certification None
Driver Brand B&C
LF Driver Size 2 x 8″
LF Magnet Material NdFeB
LF Frame Material Aluminium
LF Voice Coil Size 2.5”
MF Driver Type Compression Driver – Coaxial
MF Voice Coil Size 3″
HF Driver Type Compression Driver – Coaxial
HF Voice Coil Size 2″
HF Diaphragm Material HT Polymer
HF Exit Size 1.4″
HF Nominal Coverage (H x V) 110° x 10°
Vertical Splay Angle Range 0°-10° in 1 degree step
Preset Library Yes
Input Connector 2 x speakON NL4 (2 rear)
Waveguide Type EVO-FLOW
Enclosure Material Birch Plywood
Grille Material and Finish Powder Coated Perforated Steel
Finish Black Tough-Tone
Handles 1 side (2 pcs) + 2 back
Deployment Flying, Ground
Pole Mount None
Rigging Yes
Integral Rigging 3 Points
Sensitivity 2.83v / 1m 112 dB
System Rated Impedance LF: 8 Ω / MHF: 8 Ω
Crossover Frequency 500 Hz
Recommended HPF = BW 18 dB/OCT. 55 Hz
Included Accessory User Manual
Unpacked – Front Height (mm) 269.6
Unpacked – Rear Height (mm) 194.2
Unpacked – Width Front (mm) 790
Unpacked – Width Rear (mm) 790
Unpacked – Depth (mm) 430.7
Packed – Height (mm) 885
Packed – Width Front (mm) 526
Packed – Width Rear (mm) 526
Packed – Depth (mm) 341
Weight – Nett (kg) 33
Weight – Gross (kg) 36.0

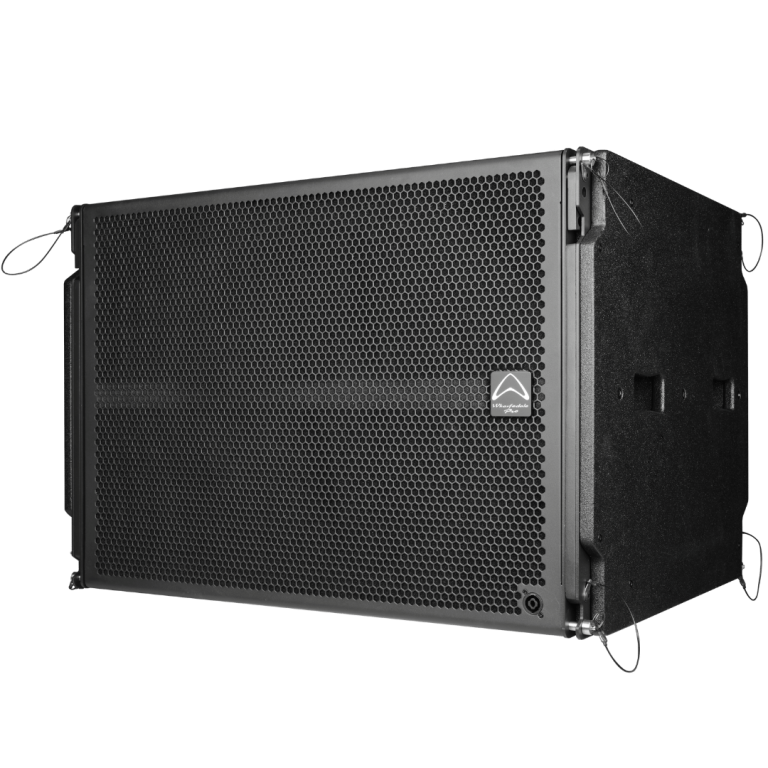

XLA-118SUB

Specification Value
Active or Passive Passive
System Type Subwoofer
Configuration Bass-reflex
System Continuous Power 1600 W
System Programme Power 3200 W
System Peak Power 6400 W
Freq Response (+/-3 dB) 35 Hz – 125 Hz
Freq Range (-10 dB) 28 Hz – 160 Hz
Bi-amp Mode Switch No
Bluetooth No
IP Certification None
Driver Brand Beyma
LF Driver Size 18″
LF Magnet Material Ferrite
LF Frame Material Aluminium
LF Voice Coil Size 4″
Vertical Splay Angle Range 0°
Preset Library Yes
Input Connector 3 x speakON NL4 (2 rear, 1 front)
Enclosure Material Birch Plywood
Grille Material and Finish Powder Coated Perforated Steel
Finish Black Tough-Tone
Handles 2 sides (4 pcs) + 2 back
Deployment Flying, Ground
Pole Mount M20
Rigging Yes
Integral Rigging 4 Points
Sensitivity 2.83v / 1m 103 dB
System Rated Impedance 4 Ω
Crossover Frequency Preset Dependent
Recommended HPF = BW 18 dB/OCT. 30 Hz
Included Accessory User Manual
Unpacked – Front Height (mm) 535
Unpacked – Rear Height (mm) 535
Unpacked – Width Front (mm) 790
Unpacked – Width Rear (mm) 790
Unpacked – Depth (mm) 566
Packed – Height (mm) 620
Packed – Width Front (mm) 870
Packed – Width Rear (mm) 870
Packed – Depth (mm) 675
Weight – Nett (kg) 72.16
Weight – Gross (kg) 81.52

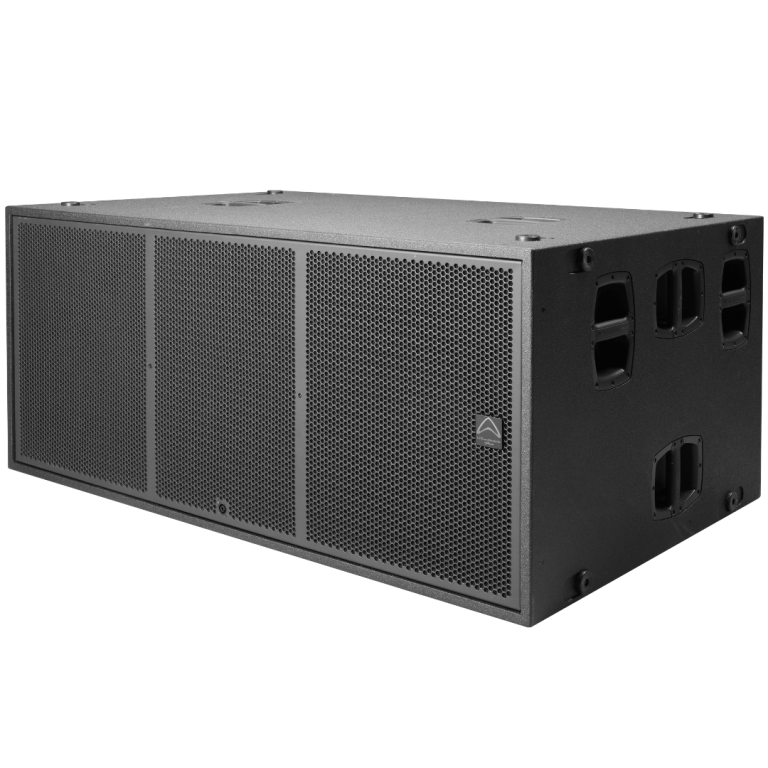

WLA-221SUB

Specification Value
Active or Passive Passive
System Type Subwoofer
Configuration Bass-reflex
System Continuous Power 2 x 1600 W
System Programme Power 2 x 3200 W
System Peak Power 2 x 6400 W
Max SPL @ 1m 147 dB (Half Space)
Freq Response (+/-3 dB) 25 Hz – 100 Hz
Freq Range (-10 dB) 18 Hz – 125 Hz
Bi-amp Mode Switch Yes
Bluetooth No
IP Certification None
Driver Brand Beyma
LF Driver Size 2 x 21″
LF Magnet Material Ferrite
LF Frame Material Aluminium
LF Voice Coil Size 4″
Preset Library Yes
Input Connector 3 x speakON NL4 (2 rear, 1 front)
Enclosure Material Birch Plywood
Grille Material and Finish Powder Coated Perforated Steel
Finish Black Tough-Tone
Handles 4 (8 pcs) + 2 (4 pcs) sides
Deployment Ground
Pole Mount None
Rigging No
Sensitivity 2.83v / 1m 106 dB* (Discreet Drive) dB
System Rated Impedance 2 x 4 Ω
Crossover Frequency Preset Dependent
Recommended HPF = BW 18 dB/OCT. 20 Hz
Included Accessory User Manual
Unpacked – Front Height (mm) 600
Unpacked – Rear Height (mm) 600
Unpacked – Width Front (mm) 1345
Unpacked – Width Rear (mm) 1345
Unpacked – Depth (mm) 850
Packed – Height (mm) 685
Packed – Width Front (mm) 1420
Packed – Width Rear (mm) 1420
Packed – Depth (mm) 900
Weight – Nett (kg) 114
Weight – Gross (kg) 133
