The Quad Industrial Pendant Pro Series delivers discreet, high‑quality passive overhead audio for commercial spaces with open or high ceilings. Featuring compact coaxial designs with wide 110° coverage and integrated tap transformers, the range provides consistent, natural sound and flexible installation options in a clean, architectural form.
Models/ Colour Options:
Features:
PENDANT PRO 4 provides discreet overhead audio in a stylish pendant form, ideal for restaurants, retail spaces and commercial environments.
Featuring a 4-inch coaxial driver, it delivers clear, natural sound with wide 110° coverage for smooth and even distribution throughout the space.
The enclosure is constructed from durable ABS and fitted with a powder-coated steel grille. Flexible power tap options allow easy integration into distributed audio systems.

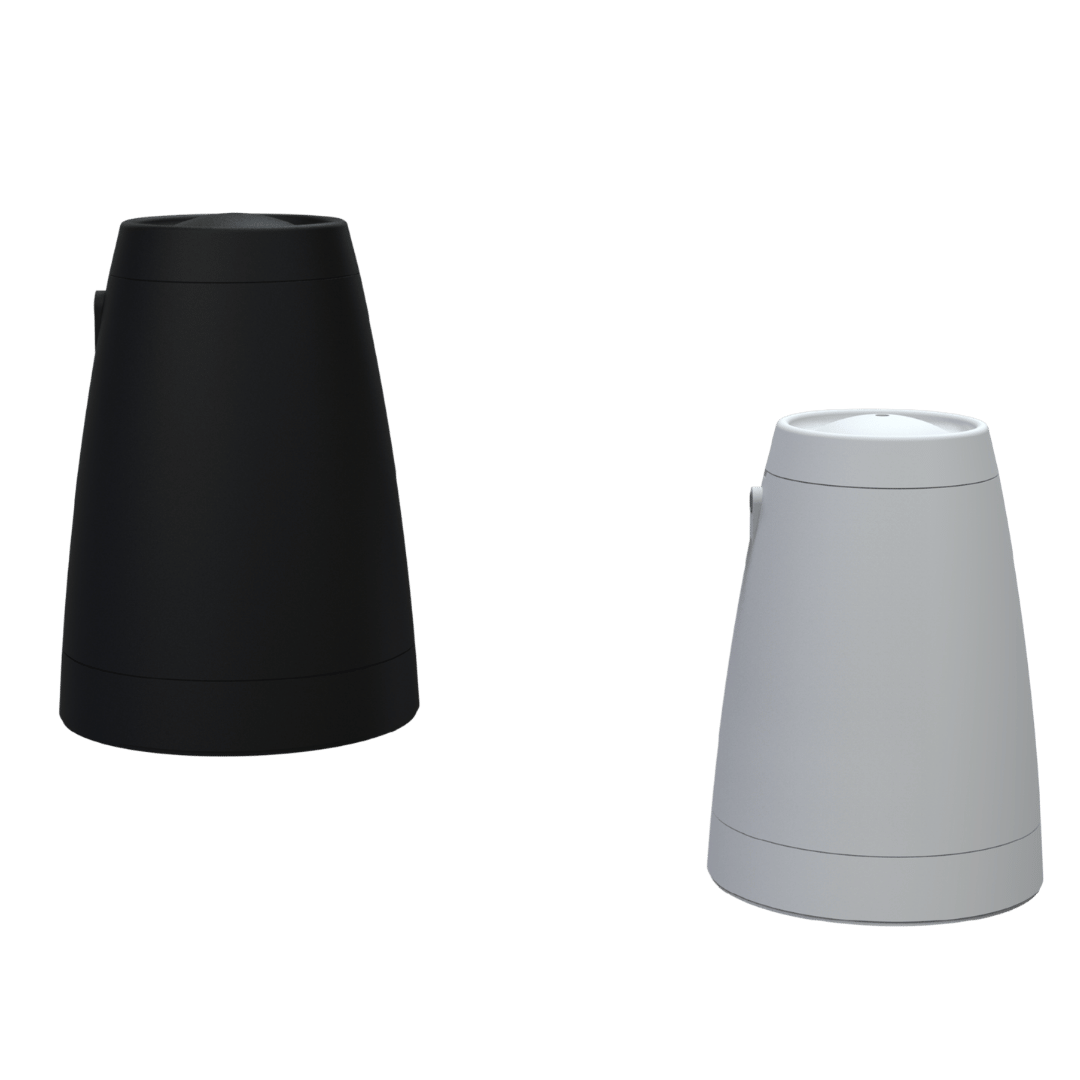

Available in black or white, PENDANT PRO 4 can also be mounted on a wall or securely placed on the ground using the optional accessory brackets.
PENDANT PRO 5 provides discreet overhead audio in a stylish pendant form, designed for restaurants, retail spaces and commercial environments that require higher output.
Using a 5.25-inch coaxial driver, it delivers powerful, natural sound with wide 110° coverage, ensuring even audio distribution across the listening area.
The enclosure is constructed from durable ABS and fitted with a powder-coated steel grille. Flexible power tap options allow easy integration into distributed audio systems.
Available in black or white, PENDANT PRO 5 can also be mounted on a wall or securely placed on the ground using the optional accessory brackets.
| Specification | PENDANT PRO 4 | PENDANT PRO 5 |
|---|---|---|
| System Type | Pendant | Pendant |
| Configuration | Two-way Coaxial | Two-way Coaxial |
| System Continuous Power | 20 W | 30 W |
| System Programme Power | 40 W | 60 W |
| System Peak Power | 80 W | 120 W |
| Max SPL @ 1m | 106 dB | 109 dB |
| Freq Range (-10 dB) | 130 Hz-20 kHz | 115 Hz-20 kHz |
| Freq Response (+/-3 dB) | 150 Hz-20 kHz | 135 Hz-20 kHz |
| LF Driver Size | 4″ | 5.25″ |
| LF Voice Coil Size | 1″ | 1″ |
| LF Rated Impedance | 8 Ω | 8 Ω |
| LF Power (RE:AES2-2012) | 20 W | 30 W |
| HF Driver Type | Silk Tweeter | Silk Tweeter |
| HF Voice Coil Size | 0.75″ | 1″ |
| HF Diaphragm Material | Silk | Silk |
| HF Power (RE:AES2-2012) | 5 W | 5 W |
| HF Rated Impedance | 8 Ω | 8 Ω |
| HF Nominal Coverage (H x V) | 110˚ x 110˚ | 110˚ x 110˚ |
| QI CORE Preset | Yes | Yes |
| UL94-V0 Certification | Yes | Yes |
| Enclosure Material | Plastic (ABS) | Plastic (ABS) |
| Grille Material and Finish | Powder Coated Steel | Powder Coated Steel |
| Finish | Black or White | Black or White |
| Brackets Included | Yes | Yes |
| Rigging | 90 cm Wire | 90 cm Wire |
| Sensitivity 2.83v / 1m | 87 dB | 88 dB |
| System Rated Impedance | 8 Ω | 8 Ω |
| Crossover Frequency | 2.4 kHz | 2.5 kHz |
| Recommended HPF = BW 18 dB/OCT. | 130 Hz | 115 Hz |
| Transformer (T) | Tap Switch | Tap Switch |
| Transformer Taps (70 V) | 20 W / 10 W / 5 W / 2.5 W / 1.25 W | 30 W / 15 W / 7.5 W / 3.75 W / 1.87 W |
| Transformer Taps (100 V) | 20 W / 10 W / 5 W / 2.5 W | 30 W / 15 W / 7.5 W / 3.75 W |
| Input Connectors (T) | 4 Pin Euroblock | 4 Pin Euroblock |
| Included Accessory | User Manual | User Manual |
| Unpacked – Height (mm) | 217 | 255 |
| Unpacked – Width (mm) | 156 | 190 |
| Packed – Height (mm) | 265 | 235 |
| Packed – Width (mm) | 455 | 425 |
| Packed – Depth (mm) | 330 | 295 |
| Weight – Nett (kg) | 1.8 | 2.5 |
