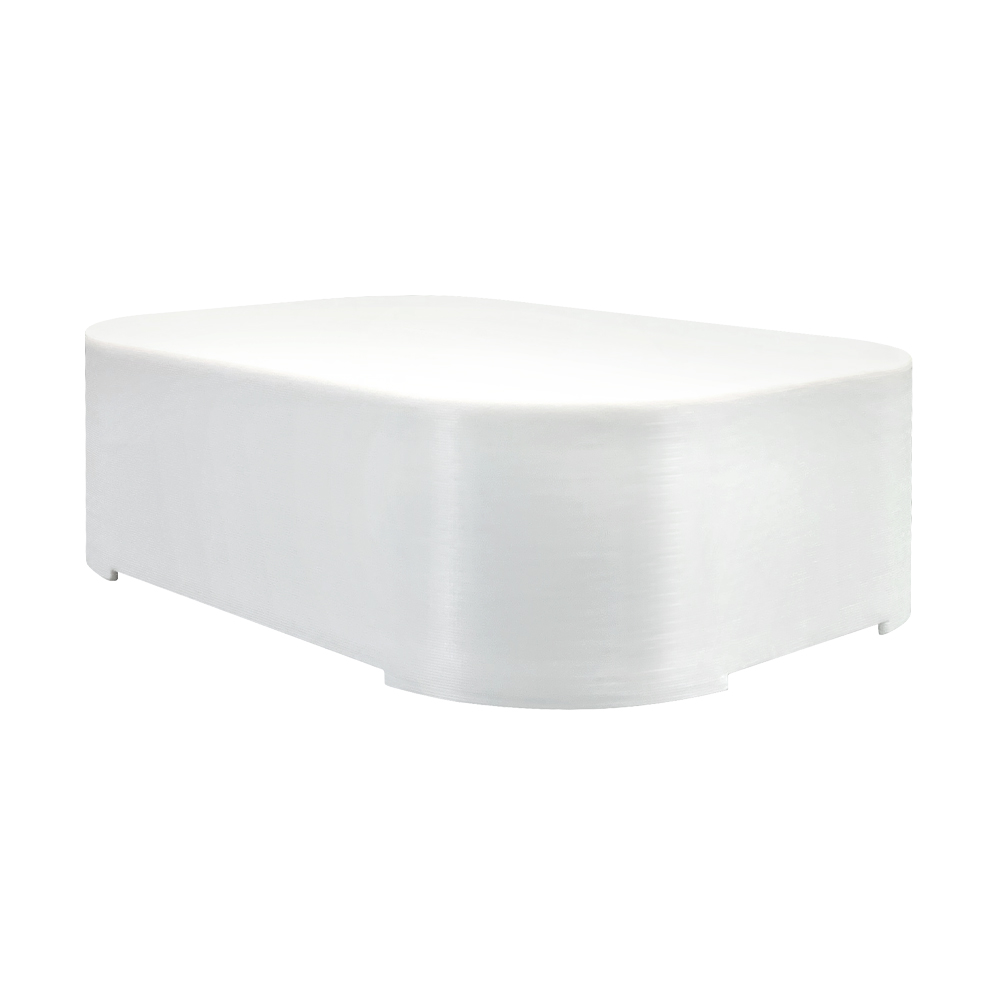

Partizan Cloud Bridge – 5.0MP for 4 cameras

The Partizan Cloud Bridge (5.0MP for 4 cameras) is a high-tech device for organizing a video surveillance system. The connection to 4 video cameras with 5.0 MP resolution is allowed. In the hybrid mode – up to 2 AHD cameras with 2.0 MP resolution and up to 2 IP cameras with 2.0 MP resolution.

Description

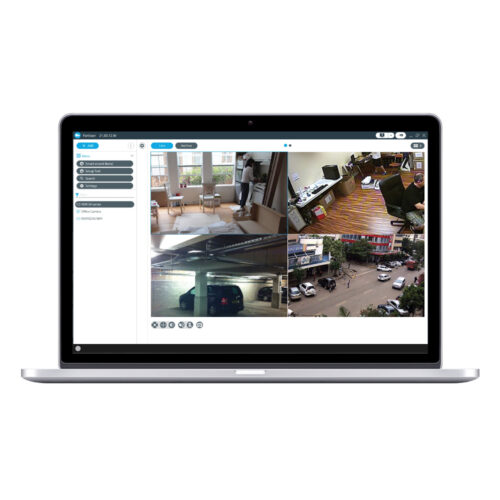

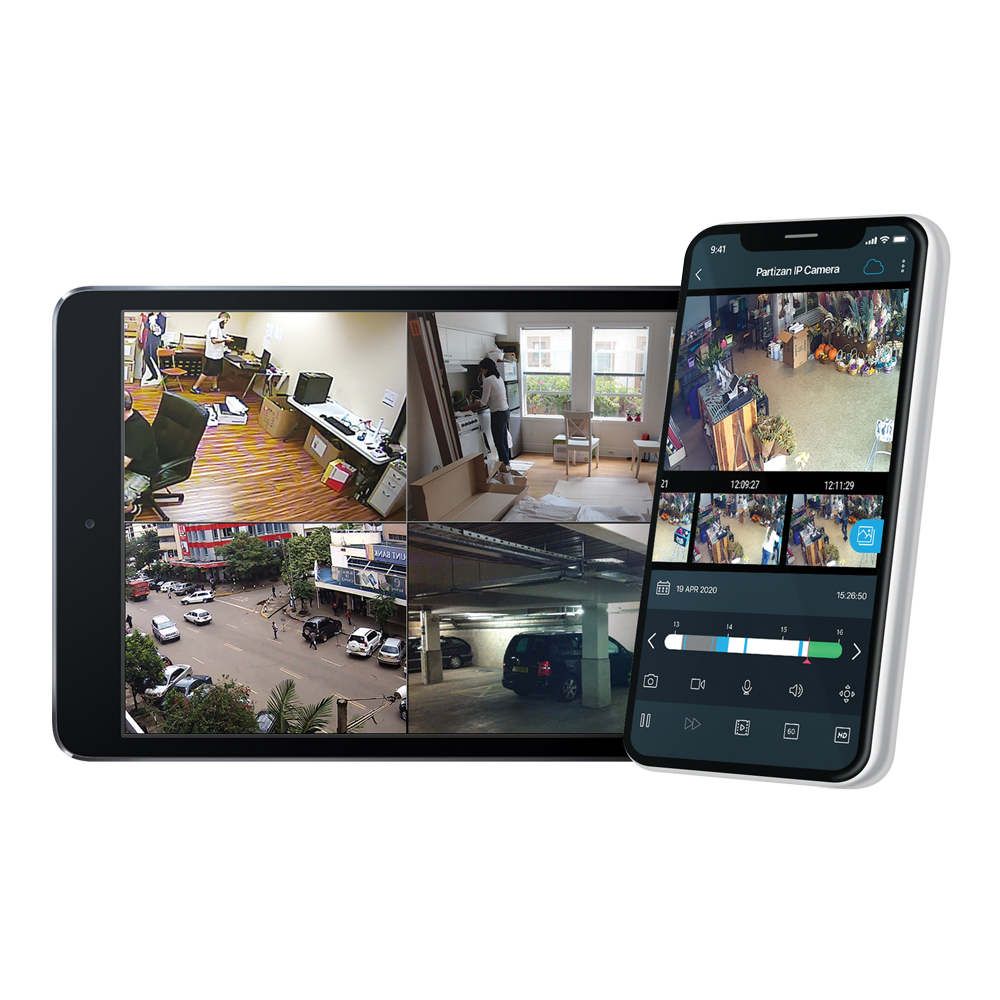

Partizan Cloud Bridge – 5.0MP for 4 cameras – The network managing can be provided from any place of the world. The modern software includes a convenient configurator and a CMS monitoring system. The Ethernet 10/100Base-T network interface provides a reliable, protected connection with the optimal data transfer rate, the maximum value of which is up to 100 Mbit/s.

This model is equipped with 1 audio input and output for recording and sound playback.

Features:

  • 4-channel analog / 16-channel IP cameras
  • AHD/TVI/CVI/CVBS/IP support
  • 5.0Mp AHD/IP support
  • ONVIF 2.4+ protocol support
  • Easy p2p connection of any third party camera to Partizan Cloud by Onvif protocol or analog BNC connection
  • Connect cameras to Cloud Bridge and then each channel of Cloud Bridge to Partizan Cloud by MAC address3 years warranty

Resources

Specifications

  • Supported camera quantity: 4 AHD or analog cameras / Up to 16 IP cameras
  • Recording:
    • 4x5M-N@12, 4xAHD-H@15 (AHD mode)
    • 16x1080p@25, 4×5.0Mp@25 (IP mode)
  • Hybrid: 2xAHD-H@25+2x1080p@25, 4xAHD-M@25+4x960p@25
  • Video compression: H.264. Classic codec is a good choice to keep recordings with a normal resolution and image quality with a reasonable storage space
  • Audio inputs/outputs: 1xRCA/1xRCA. 1 audio input (AUDIO IN) for audio recording and 1 audio output (AUDIO OUT) for audio playback
  • Video outputs: 1xVGA, 1xHDMI
  • Supported HDD (HDD not included): –
  • Network: Ethernet 10/100Base-T
  • Management and control: Optical mouse
  • Operating temperature: 0 – +55 °C
  • Dimensions: 165х113х48 mm, 265 g
  • Housing material:Plastic

Partizan

Partizan Security is a European brand created in 2008.

They produce equipment and develop software for modern security systems. They provide optimal solutions for a wide range of tasks and users thanks to the high quality and attractive price.
