Name: Partizan NVR 8Mp 64channels IP recorder (NVH-6452 SH v1.0)
SKU: 2763

Partizan NVR 8Mp 64channels IP recorder (NVH-6452 SH v1.0)

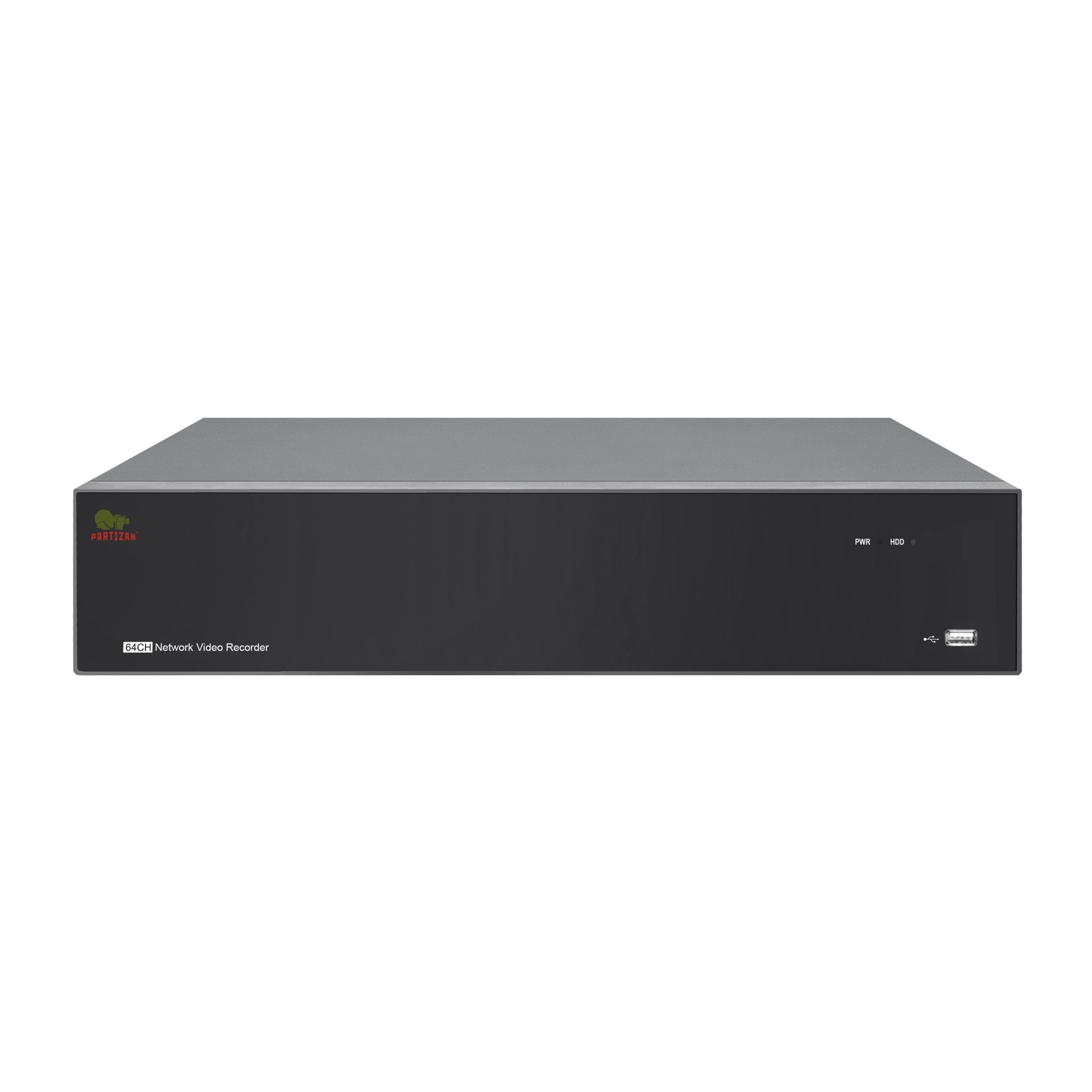

Partizan NVR non-PoE 8.0MP (4K) for 64 cameras - showing unit viewed from the front

Image showing the Partizan app on desktop computer, Tablet and phone.

The Partizan NVR 8Mp 64channels IP recorder (NVH-6452 SH v1.0) allows you to connect up to 64 video cameras with a resolution of 8Mp (4K) to this multifunctional NVR.

All the video surveillance channels are recorded simultaneously by the device in real-time mode.

our recording modes – fulltime, alarm, motion or schedule – provide an opportunity to configure the system of video surveillance according to defined tasks within every period of time.

Description

The backup to USB storage devices is allowed. H.265 is a highly efficient video compression technology that allows you to compress a high resolution video to a minimum size without quality loss, which saves space on your hard disk.

The network managing can be provided from any place of the world.

The modern software includes a convenient configurator and a CMS monitoring system. The Ethernet 10/100/1000Base-T network interface provides a reliable, protected connection with the optimal data transfer rate, the maximum value of which is up to 1 Gbit/s. This model is equipped with the audio input and output for recording and sound playback.

Specifications

Supported camera quantity(x)recording resolution@frames per second: 64x8Mp@25, 64x5Mp@25, 64x2Mp@25
POE function: NA. You need an additional switch for camera connection
Video compression: H.265. Highly efficient video compression technology that allows you to compress a high resolution video to a minimum size without quality loss, which saves space on your hard disk
Audio inputs/outputs: 1xRCA/1xRCA. 1 audio input (AUDIO IN) for audio recording and 1 audio output (AUDIO OUT) for audio playback
Video outputs: 1xVGA, 3xHDMI
Supported HDD (HDD not included): 8хSATA HDD ≤ 12Tb
Network: 2xRJ-45 (Ethernet 10/100/1000Base-T)
Management and control: Optical mouse
Operating temperature: 0 – 50 °C
Dimensions: 440x460x89 mm, 11000 g
Housing material: Metal
Additional advantages:
H.265 is a highly efficient video compression technology that allows you to compress a high resolution video to a minimum size without quality loss, which saves space on your hard disk — 64channel realtime record — 8Mp (4K) support — Alarm I/O support – 16/4 — Smart functions support: Face Detection, Pedestrian Detection, Vehicle Detection, Cross Counting, Heat Map, Crowd Density Detection, Perimeter Intrusion Detection, Line Crossing Detection, Queue Length Detection, License Plate Detection, Rare Sound Detection. Available only with SH-series cameras. — ONVIF 2.6 protocol support — Partizan mobile app support — 3 years warranty
